$79.95 ea
Limited Quantity
Quantity:


SIV-206M12VR
LED Panels & Troffers

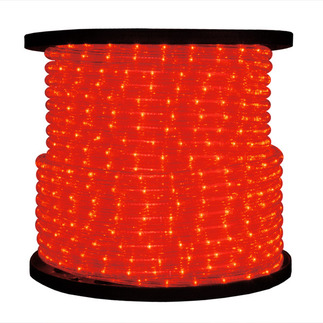

3/8 in. - Red - Rope Light - FlexTec 206M12V/R
Additional Media

3/8 in. - Incandescent - Red - Rope Light

2 Wire - 12 Volt - 150 ft. Spool - Red Tubing with Warm White Bulbs - FlexTec 206M12V/R



Need a low voltage red rope light? FlexTec 206M12V/R 12-volt rope light has all the advantages of typical 120-volt rope light, but is safer for use in outdoor and automotive applications. Customers use it in places as varied as tree trunks and under car frames. The only limit is your imagination! The 3/8-inch version packs all the punch of the standard 1/2-inch rope light, but is easier to conceal in tight locations.

Note: Requires a Low Voltage Transformer (Sold Separately)



  • Each reel includes 3 end caps, 3 connectors, and 3 5-foot power cords without plugs
  • Channel raceways are recommended for straight line installations
  • The maximum run for 12-volt incandescent rope light is 30 feet
  • Works indoors, outdoors, and even on automobiles
  • Perfect for commercial and residential applications

Brochures & Spec Sheets

Specifications

Stock Code:  SIV-206M12VR
Part No.:  206M12V/R
Bulb Spacing:  1.0 in.
Chasing:  No
Flashable:  Yes
Connection:  2 Wire
Length:  150 ft.
Life Hours:  35,000
Maximum Run:  30 ft.
UL Listed:  Yes (Uncut)


Brand:  FlexTec
Voltage:  12
Bulbs Per Foot:  12
Dimmable:  Yes
Color:  Red
Cutting Intervals:  4 in.
Diameter:  0.375 in.
Light Source:  Incandescent
Watts Per Foot:  2.5


Installation

Mounting Tips

Continuous flexing of rope light may damage its internal electrical connections. To avoid premature failure, mount rope light to sturdy surfaces such as wood or glass and reinforce it with a channel raceway or reflector trim of the correct diameter.

If you must install rope light on an unstable or moving surface such as trees or bushes, it is most cost-effective to use incandescent rope light, which can be replaced at a lower cost than LED rope light.

Movement of frozen rope lights may also damage electrical connections. Avoid installing or re-spooling rope light when temperatures are below freezing. The PVC tubing can become brittle in temperatures below 50 deg. F.



Note on Installation Safety

While 1000Bulbs.com encourages all creative use of rope lights, we assume no responsibility for problems arising from cutting rope light. Professional installation is always recommended.



Special Note on 12V Rope Light

REQUIRED 12 Volt transformer is not included. Click here to purchase transformer.
