T8 or T12 - Turn-Type Lampholders

Medium Bi-Pin Socket - Non-Shunted - Snap In or Slide On - For Use With 4 ft. Fixture - Kit For 3 Single-Ended LED Tubes

T8 or T12 - Turn-Type Lampholders Thumbnail
T8 or T12 - Turn-Type Lampholders Thumbnail

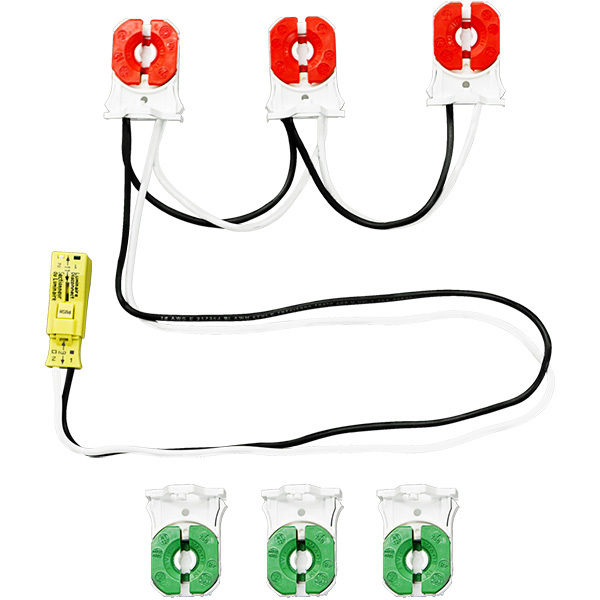

Make an energy efficient choice and use the PLT-50144 retrofit socket kit to transition from fluorescent to LED operation. This kit’s pre-wired sockets give you the freedom to use the LED tubes of your choice without the complicated and time consuming wiring that comes with retrofitting.

  • Wire measures 18-inches from the first socket to the connector and 4-inches from socket to socket
  • Kit includes 3 non-shunted sockets, 3 neutral sockets, wiring, and 1 pre-wired quick connector
  • Color-coded for added safety with the red sockets indicating LED use only
  • One kit is used with 3 direct wire LED T8 or T12 lamps
  • Economic alternative to buying a new LED fixture

View More Details

Product Image
$10.25 ea.
Retail Price $11.50
An error has occurred
SKU: PLT-50144

Lighting can be confusing! Expert Help - Call Now
1-800-624-4488

Make an energy efficient choice and use the PLT-50144 retrofit socket kit to transition from fluorescent to LED operation. This kit’s pre-wired sockets give you the freedom to use the LED tubes of your choice without the complicated and time consuming wiring that comes with retrofitting.

  • Wire measures 18-inches from the first socket to the connector and 4-inches from socket to socket
  • Kit includes 3 non-shunted sockets, 3 neutral sockets, wiring, and 1 pre-wired quick connector
  • Color-coded for added safety with the red sockets indicating LED use only
  • One kit is used with 3 direct wire LED T8 or T12 lamps
  • Economic alternative to buying a new LED fixture

Brand PLT
MPN (Part No.) PLT-50144
UPC 713674647647
Case Quantity 1
Color White
Maximum Wattage 660 Watt
Socket Type G13
Maximum Voltage 500 Volt
Lampholder(s) Non-shunted
Height 1.5 in.
Width 1 in.
Safety Rating UL Indoor

Description

Make an energy efficient choice and use the PLT-50144 retrofit socket kit to transition from fluorescent to LED operation. This kit’s pre-wired sockets give you the freedom to use the LED tubes of your choice without the complicated and time consuming wiring that comes with retrofitting.

  • Wire measures 18-inches from the first socket to the connector and 4-inches from socket to socket
  • Kit includes 3 non-shunted sockets, 3 neutral sockets, wiring, and 1 pre-wired quick connector
  • Color-coded for added safety with the red sockets indicating LED use only
  • One kit is used with 3 direct wire LED T8 or T12 lamps
  • Economic alternative to buying a new LED fixture
