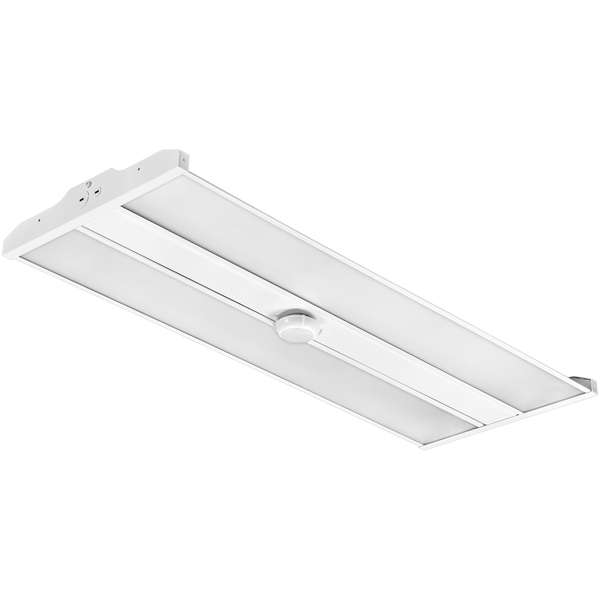

40,800 Lumens - 300 Watt - 5000 Kelvin - Linear LED High Bay Fixture with Motion Sensor
1000 Watt Metal Halide Equal - 120-277 Volt - PLT-80037
Compatible Add-Ons
Alternate Products
Details
Description
- Pre-installed PIR motion sensor for automatic occupancy detection
- Optional remote (PLT-90311) sold separately
- Excellent efficacy of 136 LPW for maximum energy savings
- Frosted PMMA lens for LED protection and uniform light distribution
- 0-10V dimming compatibility
- DLC 5.1 Premium listed for top-tier energy performance
- UL rated for use in damp locations
- 100,000-hour LED L70 lifespan
- Suspended mounting hardware included (V-hooks and 3 ft. chains)
Upgrade your commercial or industrial lighting with the PLT linear LED high bay fixture, engineered for superior brightness, energy efficiency, and long-term durability. Delivering an impressive 136 LPW and a powerful 40,800-lumen output, this high bay light is an ideal replacement for traditional metal halide fixtures in warehouses, manufacturing plants, distribution centers, gyms, and large commercial spaces.
This fixture comes equipped with a PIR motion occupancy sensor, enabling the light to brighten when activity is detected and dim or turn off when the area is unoccupied. This intelligent control feature not only cuts energy costs but also enhances workplace safety and security. For added convenience, pair the sensor with the optional remote (PLT-90311).
With a crisp 5000K daylight color temperature, the PLT high bay provides clean, high-visibility lighting ideal for high-bay ceilings and expansive areas. The durable frosted PMMA lens provides even light distribution while protecting internal components.
Reduce energy consumption and improve visibility in your facility with the PLT LED high bay fixture (PLT-80037) featuring a built-in PIR motion sensor, an ideal choice for modern warehouse and industrial lighting.
Brochures & Spec Sheets
IES Files
Product Attributes
| Brand | PLT |
|---|---|
| MPN (Part No.) | PLT-80037 |
| UPC | 842821127173 |
| DLC Part Number | PLTM179512 |
| Lighting Technology | LED |
| LED Chip Type | Bridgelux/SMD 2835 |
| Dimmable | Yes |
| CRI | Standard CRI |
| Color Temperature | 5000 Kelvin |
| LED L70 Life Hours | 100,000 |
| Wattage | 300 Watt |
| LPW | 136 |
| Fixture Type | High Bay (Linear) with Sensor |
| Lumens | 40,800 |
| Voltage | 120/208/240/277 |
| Ratings and Certifications | Damp Location/DLC Premium 5.1/UL |
|---|---|
| Beam Angle | 95 Degree |
| Finish | White |
| Metal Halide Equal | 1000 Watt |
| Mounting | (1) pair of V-hooks /Chain |
| Surge Protection | 2kV |
| Operating Temp | -4 Deg. to 122 Deg. F |
| Lens | PMMA Acrylic |
| Sensor Type | Passive Infrared (PIR) |
| Length Ft | 2.6 ft. |
| Height | 1.8 in. |
| Width | 11.8 in. |
| Weight | 11.6 lbs. |
| Warranty | 5-Year Limited |
| Case Quantity | 1 |
