Intermatic ET8215C - Time Switch
7-Day Electronic Astronomic - NEMA 1 Indoor Steel Case - 2 Circuit - SPST - 30 Amps - 120/208/240/277 Volt
Enter your zip code for inventory and delivery information.
Intermatic ET8215C - Time Switch
7-Day Electronic Astronomic - NEMA 1 Indoor Steel Case - 2 Circuit - SPST - 30 Amps - 120/208/240/277 Volt
Comparable Products
| Image |
|
|
|
|
|
|---|---|---|---|---|---|
| Description | Intermatic ET8215C - Time Switch | Intermatic ET90115C Time Switch | Intermatic ET90115CR Time Switch | Intermatic ET90215C Time Switch | Intermatic ET90215CR Time Switch |
| Price | $198.08 | $410.16 | $420.74 | $479.97 | $525.29 |
| SKU | ELEC-ET8215C | ELEC-ET90115C | ELEC-ET90115CR | ELEC-ET90215C | ELEC-ET90215CR |
| Brand | Intermatic | Intermatic | Intermatic | Intermatic | Intermatic |
| MPN (Part No.) | ET8215C | ET90115C | ET90115CR | ET90215C | ET90215CR |
| Add to Cart | Current Item |
An error has occurred
|
An error has occurred
|
An error has occurred
|
An error has occurred
|
Brochures & Spec Sheets
ET8000 Series InstructionsDescription

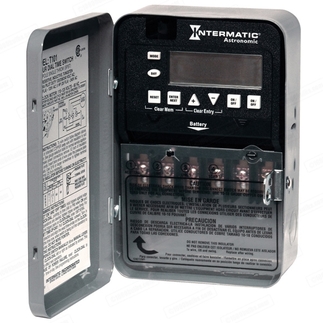

This Intermatic ET8215C electronic astronomic pulsed contact 7-day time switch automatically switches loads according to a preset weekly schedule with to-the-minute accuracy. The astronomic feature provides sunset ON and sunrise OFF settings to eliminate the need for separate photo control devices. The independent 7-day programming provides complete flexibility for applications where load switching differs each day of the week. The timer features an auto daylight saving time adjustment and astronomic programming can be combined with independent programs to provide a sunset ON and timed OFF program.
Specifications
| Brand: | Intermatic |
| MPN (Part No.): | ET8215C |
| UPC: | 078275089761 |
| CA Title 20: | Compliant |
| CA Title 24: | Compliant |
| Safety Rating: | Not Applicable |
| Voltage: | 120/208/240 |
| Amperage: | 30 Amps |
| Battery Backup: | AAA Alkaline |
| Housing: | NEMA 1 Indoor Steel |
| HP Rating: | 1HP / 2HP |
| Number of Circuits: | 2 |
| Set Points: | 14 On/Off Per Day Per Circuit |
| Switch Rating: | See Spec Sheet |
| Switch Type: | SPST |
| CSA Listed: | Certified |
| Height: | 7.75 in. |
| Width: | 5 in. |
| Depth: | 3 in. |
| Case Quantity: | 6 |
Intermatic ET8215C- 7-Day Electronic Astronomic Time Switch - NEMA 1 Indoor Steel Case - 2 Circuit - SPST - 30 Amps - 120/208/240/277 Volt is rated
4.0 out of
5 by
4.
Rated 2 out of
5
by
Jan13 from
Difficult to program but when done very effecive
It took quite a while to program for 7 days.
It's done and working very well.
Date published: 2015-03-01
Rated 5 out of
5
by
Oakgrove2 from
Electronic Seven day timer.
This timer is an excellent unit for controlling parking lot lights!
The astronomic feature allows lights to come on and off at sunup.
Different operation can be selected for individual days of the week. The turnoff can have a selectable fixed time such as off at midnight.
Instructions for programing are accurate if followed carefully.
Date published: 2014-06-02
Rated 4 out of
5
by
uwireme from
read the directions again
had to read the directions several times
I wish intermatic could have an easy answer program so you dont need the directions to program
Date published: 2012-02-19
Rated 5 out of
5
by
Anonymous from
Heavy Duty Professional Grade
The 8215C is actually a 2xSPST or DPST. It is the two-circuit version of the 8015C.
I have installed four of these timers to control parking lot lights and large Christmas light displays. The battery backup and automatic adjustments for Daylight Saving Time work flawlessly. These timers are a nice alternative to installing light sensors when you use them to control lights you want to turn on/off at dusk/dawn. My only disappointment is the inconsistency in internal clock speed from unit to unit. At the end of a year, timers can be out of sync with one another by three minutes or more.
Note: When power is cut to the timer, the line/load circuits automatically open. Power must be on for the circuits to remain closed.
Date published: 2012-01-13
