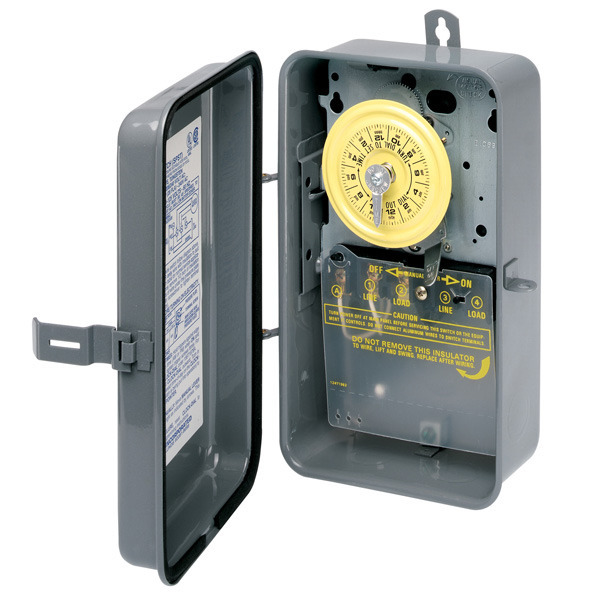

Intermatic T104R - Time Switch

24 Hr. Dial - NEMA 3R Raintight Steel Case - Gray Finish - DPST - 40 Amps - 208-277V, 480V

Intermatic T104R - Time Switch Thumbnail

This gray finish Intermatic T104R raintight steel case 24-hour dial time switch is designed for industrial, commercial, and residential applications and has the highest horsepower ratings in the industry for loads up to 40 amps, providing direct 24 hour control of most loads. The time switch provides 1 to 12 'ON/OFF' operations each day with minimum ON/OFF times of 1 hour and is ideal for heaters, lighting, and many other applications. This time switch is equipped with one 'ON' and one 'OFF' tripper and is encased in a steel, raintight plastic case for added durability and convenience.



›  View Specs & Details

Product Image
An error has occurred
Not for Sale. Reference Only.
SKU: ELEC-T104R

This gray finish Intermatic T104R raintight steel case 24-hour dial time switch is designed for industrial, commercial, and residential applications and has the highest horsepower ratings in the industry for loads up to 40 amps, providing direct 24 hour control of most loads. The time switch provides 1 to 12 'ON/OFF' operations each day with minimum ON/OFF times of 1 hour and is ideal for heaters, lighting, and many other applications. This time switch is equipped with one 'ON' and one 'OFF' tripper and is encased in a steel, raintight plastic case for added durability and convenience.



Brand Intermatic
MPN (Part No.) T104R
CSA Listed Certified
UPC 078275000124
Case Quantity 12
HP Rating 5HP
Housing NEMA 3R Raintight Steel
Trippers Included 1 ON & 1 OFF
Set Points Up To 12 On/Off per Day
Sold Separately Additional Trippers
Switch Type DPST
Depth 3.63 in.
Height 9.38 in.
Width 5.5 in.
Amperage 40 Amps
Voltage 208/240/277
Safety Rating N/A

Description

This gray finish Intermatic T104R raintight steel case 24-hour dial time switch is designed for industrial, commercial, and residential applications and has the highest horsepower ratings in the industry for loads up to 40 amps, providing direct 24 hour control of most loads. The time switch provides 1 to 12 'ON/OFF' operations each day with minimum ON/OFF times of 1 hour and is ideal for heaters, lighting, and many other applications. This time switch is equipped with one 'ON' and one 'OFF' tripper and is encased in a steel, raintight plastic case for added durability and convenience.



Applications

  • Indoor/Outdoor Lighting
  • Post Lanterns
  • Signs
  • Pool Heaters
  • Filters
  • Hydrochlorinators
  • Air Conditioning
  • Blowers
  • Electric Fences
  • Conveyers
  • Pumps
  • Heating/Ventilating Systems
  • Music and Signal Systems
  • Fans
  • Poultry Foggers
