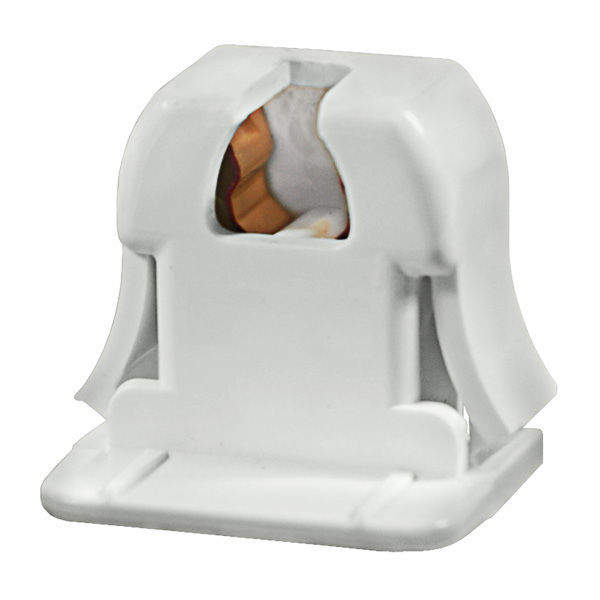

T5 - Mini Bi-Pin Socket - PLT EG897
Turn-Type Lampholder - Non-Shunted - For Programmed Start Ballasts - Snap In
Enter your zip code for inventory and delivery information.
T5 - Mini Bi-Pin Socket - PLT EG897
Turn-Type Lampholder - Non-Shunted - For Programmed Start Ballasts - Snap In
Comparable Products
| Image |
|
|
|
|
|
|---|---|---|---|---|---|
| Description | T5 - Mini Bi-Pin Socket - PLT EG897 | T5 - PLT EG8972H | T5 Mini Bi-Pin Socket - Non-Shunted | T5 - Turn-Type Lampholder - PLT L420B | Leviton 13654-EXS - Retro-Fit Lampholder for T8 to T5 Conversion |
| Price | $2.17 | $1.95 | $3.05 | $4.49 | $9.24 |
| SKU | SOCK-EG897 | SOCK-EG8972H | SOCK-L420 | CL-10003 | CL-10009 |
| Brand | PLT | PLT | PLT | PLT | Leviton |
| MPN (Part No.) | EG897 | EG8972H | L-420 | 13654-EXS | |
| Add to Cart | Current Item |
An error has occurred
|
An error has occurred
|
An error has occurred
|
An error has occurred
|
Description
This 1-inch T5 turn-type lampholder is for use with fluorescent lamps having a G5 base. This non-shunted socket can only be used with programmed start ballasts. It can be mounted either by snapping it in or sliding it onto its intended fixture. This socket is rated for a maximum voltage of 600 and is UL listed and CSA certified.
Specifications
| Brand: | PLT |
| MPN (Part No.): | EG897 |
| Safety Rating: | UL |
| Maximum Voltage: | 600 Volt |
| Mounting: | Snap-In or Slide-On |
| Socket Type: | G5 |
| Lampholder(s): | Non-shunted |
| Case Quantity: | 10 |
T5 - Turn-Type Lampholder - Mini Bi-Pin Socket - Non-Shunted - For Programmed Start Ballasts - Snap In - PLT EG897 is rated
4.7 out of
5 by
3.
Rated 5 out of
5
by
JoeBush777 from
Simple, straightforward T5 socket
This style bi-pin socket has been around a long time for T8 tubes. Now it is available for T5 tubes also. I bought this simple design to replace the "rotating-barrel" new style of T5 socket. I installed 25 T5 fixtures with the new rotating barrel type sockets. After 3 years, those suckers are baked and now won't rotate, impossible to change burned out T5 tube. Had to remove whole fixture from ceiling, put it on the bench and disassemble, just to get the tubes out. I replaced those burnt sockets with these simple, classic old style T5 sockets. Next time I have to replace tubes, now it's easy, just like it's supposed to be.
Date published: 2017-03-24
Rated 5 out of
5
by
jayrudy88 from
easy to install
This t5 lamp bi pin is good quality for the price and easy to install.
Date published: 2015-03-05
Rated 4 out of
5
by
waikiki91 from
Good quality for the price
Product exceeded expectations, for the cost good value. Hard to find product at many vendors.
Date published: 2011-06-10
