    Sola E-MCA00W171-BC - 175 Watt - Pulse Start - Metal Halide Ballast Image

    Sola E-MCA00W171-BC - 175 Watt - Pulse Start - Metal Halide Ballast

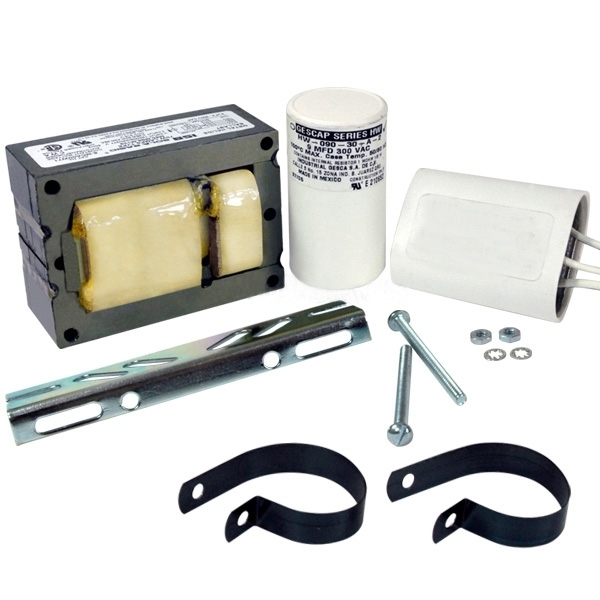

    ANSI M137/M152 - 4 Tap - Power Factor 90% - Max. Temp. Rating 212 Deg. F - Includes Dry Capacitor, Ignitor, and Bracket Kit


    Product Image
    $43.55 ea
    An error has occurred
    BS-MH0175MTPS

    Sola E-MCA00W171-BC - 175 Watt - Pulse Start - Metal Halide Ballast

    ANSI M137/M152 - 4 Tap - Power Factor 90% - Max. Temp. Rating 212 Deg. F - Includes Dry Capacitor, Ignitor, and Bracket Kit

    Comparable Products

    Sola E-MCA00W171-BC - 175 Watt - Pulse Start - Metal Halide Ballast Image Plusrite 7212 - 175 Watt - Pulse Start - Metal Halide Ballast Image Advance 71A5593-001D - 175 Watt - Pulse Start - Metal Halide Ballast Image
    Description Sola E-MCA00W171-BC - 175 Watt - Pulse Start - Metal Halide Ballast Plusrite 7212 - 175 Watt - Pulse Start - Metal Halide Ballast Advance 71A5593-001D - 175 Watt - Pulse Start - Metal Halide Ballast
    Price $43.55 $37.33 $90.67
    SKU BS-MH0175MTPS PLUSRITE-7212 BA-71A5593001D
    Brand Sola Plusrite Advance
    MPN (Part No.) E-MCA00W171-BC 7212 71A5593-001D
    Current Item
    An error has occurred
    An error has occurred

    Brochures & Spec Sheets

    Description

    The Sola E-MCA00W171-BC metal halide ballast features a 4-tap voltage input for compatibility from 120 to 277 volts. For use with 175 watt lamps, this magnetic HID ballast boasts a high power factor of 90%, ensuring maximum efficiency. A temperature rating of 212 degrees F makes the ballast suitable for mounting in warehouses and manufacturing facilities where high heat may be an issue. Includes dry capacitor, ignitor and bracket kit.

    Specifications

    Brand:Sola
    MPN (Part No.):E-MCA00W171-BC
    UPC:660077381015
    ANSI Code:M137/M152
    UL Listed:Yes
    Wattage:175 Watt
    Voltage:277/120/208/240
    Ballast Type:CWA
    Mounting:Hardware Included
    Operates:MH175/PS
    Start Temp. (Min):-22 Deg. F
    Start Temp. (Max):212 Deg. F
    Power Factor:90%
    Start Method:Pulse Start
    Type:Metal Halide
    CSA Listed:Yes
    Length:3.94 in.
    Height:2.8 in.
    Width:3.5 in.
    Weight:8.2 lb.
    Warranty:3 Years
