    BL-EC3DT4MWKU2S
    New LED Panels
    Lutron EcoSystem EC3DT4MWKU2S Image

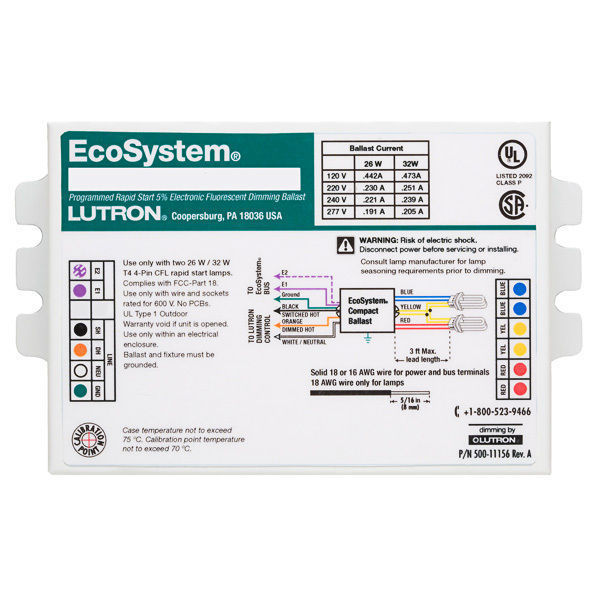

    Lutron EcoSystem EC3DT4MWKU2S

    (2) Lamp - 26 Watt CFL - 120 Volt - Programmed Start - 0.95 Ballast Factor - Dimming


    Product Image
    $107.06 ea
    An error has occurred
    Limited quantity available
    BL-EC3DT4MWKU2S

    Lutron EcoSystem EC3DT4MWKU2S

    (2) Lamp - 26 Watt CFL - 120 Volt - Programmed Start - 0.95 Ballast Factor - Dimming

    Description

    EcoSystem compact ballasts provide high-performance dimming for any compact fluorescent application, including within an EcoSystem Lighting Control System. EcoSystem compact ballasts offer 100% to 5% dimming, providing both energy savings and lighting flexibility.

    Brochures & Spec Sheets

    Features

    • Continuous, flicker-free dimming from 100% to 5%
    • Compatible with EcoSystem Digital Bus control, GRAFIK Eye QS Control Unit, and Quantum software, allowing for integration into an existing/planned EcoSystem Lighting Control System
    • Supports standard 3-wire line-voltage phase control technology
    • Programmed rapid start design ensures full-rated lamp life while dimming and cycling
    • Lamps turn on to any dimmed level without flashing to full brightness
    • Low harmonic distortion throughout the entire dimming range
    • Ballast does not interfere with infrared devices
    • Eliminates circuit breaker tripping, switch arcing, and relay failure
    • Ultra-quiet operation
    • Protected from miswires of any input power to control lead, or from lamp leads to each other and/or ground
    • End-of-lamp-life protection circuitry ensures safe operation throughout entire lamp life
    • Nonvolatile memory restores all ballast settings after power failure
    • 100% performance tested at factory

    EcoSystem compact ballasts provide high-performance dimming for any compact fluorescent application, including within an EcoSystem Lighting Control System. EcoSystem compact ballasts offer 100% to 5% dimming, providing both energy savings and lighting flexibility.

    Comparable Products

    Lutron EcoSystem EC3DT4MWKU2S Image Advance Mark 7 0-10V IZT-2S26-M5-LD Image Advance Mark 7 0-10V IZT-2S26-M5-BS Image Advance Mark 10 Powerline REZ2T42M3LD Image Advance Mark 10 Powerline REZ-1T42-M2-LD Image
    Description Lutron EcoSystem EC3DT4MWKU2S Advance Mark 7 0-10V IZT-2S26-M5-LD Advance Mark 7 0-10V IZT-2S26-M5-BS Advance Mark 10 Powerline REZ2T42M3LD Advance Mark 10 Powerline REZ-1T42-M2-LD
    Price $107.06 $59.98 $77.14 $93.08 $94.54
    SKU BL-EC3DT4MWKU2S BA-IZT2S26M5LD3 BA-IZT2S26M5BS3 BA-REZ2T42M3LD3 BA-REZ1T42M2LDK
    Brand Lutron Advance Advance Advance Advance
    MPN (Part No.) EC3DT4MWKU2S IZT-2S26-M5-LD IZT-2S26-M5-BS REZ-2T42M3-LD-35M REZ-1T42-M2-LD
    Current Item
    An error has occurred
    An error has occurred
    An error has occurred
    An error has occurred

    Specifications

    Brand:Lutron
    MPN (Part No.):EC3DT4MWKU2S
    UPC:027557636766
    Family:EcoSystem
    Safety Rating:UL Damp Location
    Voltage:120
    Ballast Factor:0.95
    Lamps Operated:(2) Lamps
    Start Temp. (Min):50 Deg. F
    Power Factor:95%
    Start Method:Programmed Start
    THD:10%
    Type:Electronic Fluorescent
    CSA Listed:Yes
    Length:4.2 in.
    Height:1 in.
    Width:3 in.
    Weight:0.65 lb.
    Warranty:5 Years
