    Advance 71A6052001D - 400 Watt - Pulse Start - Metal Halide Ballast Image

    Advance 71A6052001D - 400 Watt - Pulse Start - Metal Halide Ballast

    ANSI M135/M155 - 5 Tap - Power Factor 90% - Max. Temp. Rating 221 Deg. F - Includes Dry Capacitor, Ignitor, and Bracket Kit


    Product Image
    $82.67 ea
    An error has occurred
    Limited Quantity Available
    BA-71A6052001

    Advance 71A6052001D - 400 Watt - Pulse Start - Metal Halide Ballast

    ANSI M135/M155 - 5 Tap - Power Factor 90% - Max. Temp. Rating 221 Deg. F - Includes Dry Capacitor, Ignitor, and Bracket Kit

    Comparable Products

    Advance 71A6052001D - 400 Watt - Pulse Start - Metal Halide Ballast Image 50 Watt - Pulse Start Metal Halide Ballast Image Advance IMH100DLFM - 100 Watt - Electronic Metal Halide Ballast Image Hatch MC20-1-F-120X - 20 Watt - Electronic Metal Halide Ballast Image Hatch MC100-1-F-120U - 100 Watt - Electronic Metal Halide Ballast Image
    Description Advance 71A6052001D - 400 Watt - Pulse Start - Metal Halide Ballast 50 Watt - Pulse Start Metal Halide Ballast Advance IMH100DLFM - 100 Watt - Electronic Metal Halide Ballast Hatch MC20-1-F-120X - 20 Watt - Electronic Metal Halide Ballast Hatch MC100-1-F-120U - 100 Watt - Electronic Metal Halide Ballast
    Price $82.67 $27.40 $68.75 $68.99 $77.99
    SKU BA-71A6052001 PLT-50PX2TK BA-IMH100DLFM BH-MC201F120X BH-MC1001F120U
    Brand Advance PLT Advance Hatch Hatch
    MPN (Part No.) 71A6052-001D 50PX2TK IMH100DLFM MC20-1-F-120X MC100-1-F-120U
    Current Item
    An error has occurred
    An error has occurred
    An error has occurred
    An error has occurred

    Description

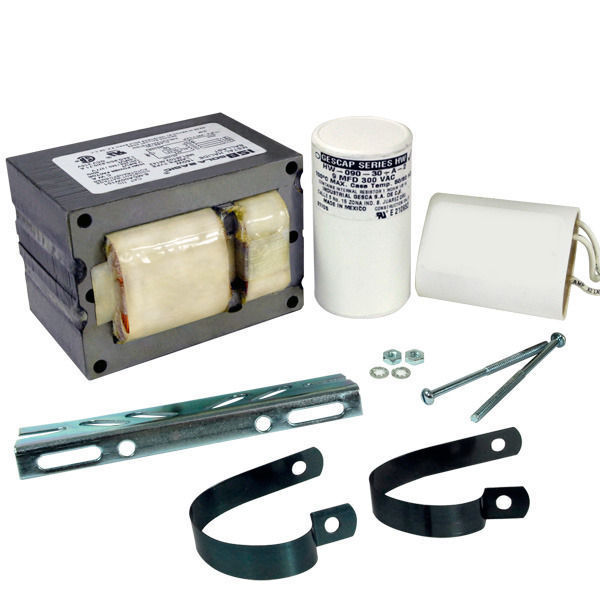

    The Advance 71A6052-001D metal halide ballast features a 5-tap voltage input for compatibility from 120 to 480 volts. For use with 400 watt lamps, this magnetic HID ballast boasts a high power factor of 90%, ensuring maximum efficiency. A temperature rating of 221 degrees F makes the ballast suitable for mounting in warehouses and manufacturing facilities where high heat may be an issue. Includes dry capacitor, ignitor, and bracket kit.

    Specifications

    Brand:Advance
    MPN (Part No.):71A6052-001D
    ANSI Code:M135/M155
    UL Listed:Yes
    Wattage:400 Watt
    Voltage:277/480/120/208/240
    Ballast Type:Super-CWA
    Mounting:Hardware Included
    Operates:MH400/PS
    Start Temp. (Min):-22 Deg. F
    Start Temp. (Max):221 Deg. F
    Power Factor:90%
    Start Method:Pulse Start
    Type:Metal Halide
    CSA Listed:Yes
    Length:4.75 in.
    Height:4.4 in.
    Width:4.3 in.
    Weight:16 lbs.
    Warranty:2 Years
