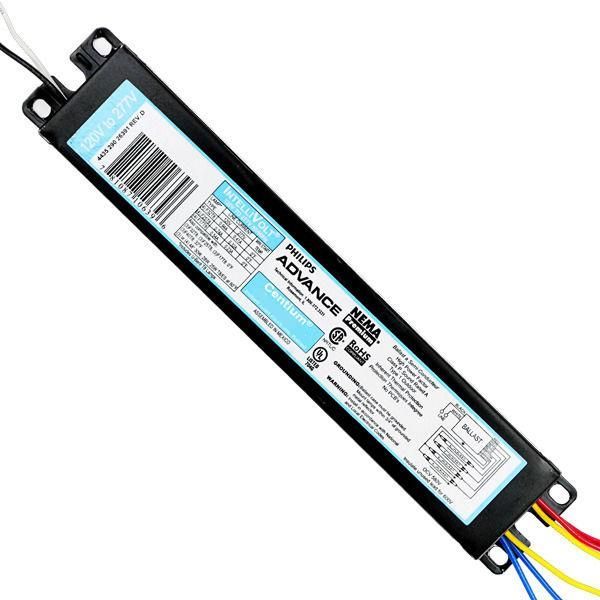

Advance Centium ICN2S5490C-SC-35I
(2) Lamp - F54T5/HO - 120/277 Volt - Programmed Start - 1.0 Ballast Factor
SKU:
BA-ICN2S5490CSC35
Details
Description
Philips Advance programmed-start Centium ballasts for T5HO lamps are the optimal choice for a broad range of retail, commercial, institutional, and industrial applications including schools, offices, specialty and department stores, warehouses, and manufacturing. The Advance ICN2S5490C-SC-35I electronic fluorescent ballast operates (2) F54T5/HO lamps at 120/277 input volts.
Brochures & Spec Sheets
Advance ICN2S5490C-SC-35I Spec Sheet
Product Attributes
| Brand | Advance |
|---|---|
| MPN (Part No.) | ICN2S5490C-SC-35I |
| Lighting Technology | Fluorescent |
| Family | Centium |
| UL Listed | Yes |
| Voltage | 120 |
| Ballast Factor | 1 |
| Lamps Operated | (2) Lamps |
| Start Temp. (Min) | -20 Deg. F |
| Power Factor | 98% |
| Start Method | Programmed Start |
|---|---|
| THD | 10% |
| Type | Electronic Fluorescent |
| CSA Listed | Yes |
| Length | 9.5 in. |
| Height | 1.18 in. |
| Width | 1.7 in. |
| Weight | 1 lb. |
| Warranty | 5-Year Limited |
| Case Quantity | 10 |
