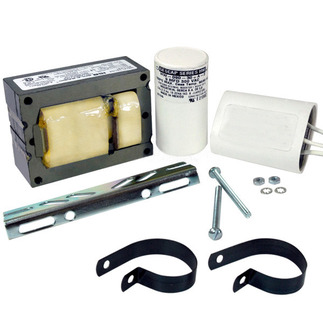

Sola E-MZA00W100 - 100 Watt - Metal Halide Ballast - Pulse Start - 4 Tap - ANSI M90 - Power Factor 90% - Max Temp Rating 100 deg C. - Includes Dry Capacitor, Ignitor and Bracket Kit
Additional Media

Sola E-MZA00W100 - 100 Watt - Pulse Start Metal Halide Ballast

ANSI M90 - 4 Tap - Power Factor 90% - Max. Temp. Rating 212 Deg. F - Includes Dry Capacitor, Ignitor and Bracket Kit

The Sola E-MZAOOW100 metal halide ballast features a 4-tap voltage input for compatibility from 120 to 277 volts. For use with 100 watt lamps, this magnetic HID ballast boasts a high power factor of 90%, ensuring maximum efficiency. A temperature rating of 212 degrees F makes the ballast suitable for mounting in warehouses and manufacturing facilities where high heat may be an issue. Includes dry capacitor, ignitor and bracket kit.

Brochures & Spec Sheets


Stock Code:  BS-MH0100MT
Part No.:  E-MZAOOW100
Wattage:  100 Watt
ANSI Code:  M90
Length:  3.93 in.
Height:  2.81 in.
Operates:  MH100/PS
Start Temp. (Max):  212 Deg. F
Start Method:  Pulse Start
Weight:  6 lbs.
UL Listed:  Yes
Brand:  Sola
UPC:  660077381756
Voltage:  120/208/240/277
Ballast Type:  HX-HPF
Width:  3 in.
Mounting:  Hardware Included
Start Temp. (Min):  -20 Deg. F
Power Factor:  90%
Type:  Metal Halide
CSA Listed:  Yes
Warranty:  3 Years

Customer Reviews

Rated 4.8 out of 5 by 4 reviewers.
Rated 5 out of 5 by works great works great easy to install April 14, 2014
Rated 4 out of 5 by No wiring installation instructions I couldn't give this product five (5) stars because there was no wiring installation instructions enclosed with the ballast. I bought two (2) of them at the same time and both were missing. I ended up using an old Keystone brand wiring installation instruction sheet to make sure my wiring was properly connected. December 29, 2012
Rated 5 out of 5 by This product is the best and at a very reasonable price. I maintain street pole lights for a shopping center and a mobile home park, so I use several of this type ballast in a year, and these as good if no better than what I was using previously.. February 27, 2012
Rated 5 out of 5 by Works as it should This seems to be a nice ballast, easy to wire and starts fast. December 1, 2011
