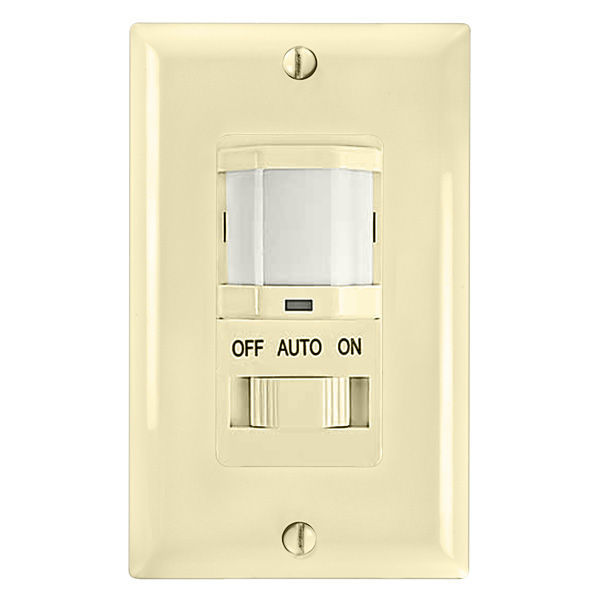

Intermatic IOS-DSIF-IV - Ivory - Passive Infrared (PIR)

Occupancy Sensor with Slide - 500W Max. - 120 Volt - Neutral Required

Intermatic IOS-DSIF-IV - Ivory - Passive Infrared (PIR) Thumbnail

Intermatic IOS-DSIF-IV - Ivory - Passive Infrared (PIR)

Occupancy Sensor with Slide - 500W Max. - 120 Volt - Neutral Required


The Intermatic IOS-DSIF-IV PIR occupancy sensor detects an occupant's presence in an area, sensing the difference between heat emitted by a person and atmospheric heat. It features automatic on/off control with an optional manual on/off setting for increased flexibility. The time delay off ranges from 15 seconds to 30 minutes, depending on user setting. Designed for use with electronic fluorescent ballasts, it has an ivory finish and includes a standard decorator wall plate. The sensor is UL/cUL listed, CA Title 24 compliant, and has a two-year limited warranty.

›  View Important Details

SKU: ELEC-IOSDSIFIV
Product Image
An error has occurred

Not for Sale. Reference Only.

Details


Description

The Intermatic IOS-DSIF-IV PIR occupancy sensor detects an occupant's presence in an area, sensing the difference between heat emitted by a person and atmospheric heat. It features automatic on/off control with an optional manual on/off setting for increased flexibility. The time delay off ranges from 15 seconds to 30 minutes, depending on user setting. Designed for use with electronic fluorescent ballasts, it has an ivory finish and includes a standard decorator wall plate. The sensor is UL/cUL listed, CA Title 24 compliant, and has a two-year limited warranty.

Product Attributes

Brand Intermatic
MPN (Part No.) IOS-DSIF-IV
UPC 078275125223
CA Title 24 Compliant
Color Ivory
Maximum Wattage 500 Watt
Voltage 120
Connection Neutral Wire Required
Coverage 150 Degree - 980 sq. ft.
Load Type FL/Incandescent
Motion Detection PIR (Passive Infrared)
Motion Sensor Type Occupancy
Operation Single Pole
Switch Type Slide
Time Delay 15 sec. to 30 min.
Warranty 2 Years

Load Rating

Load Type
Voltage
Load Rating
HP
Coverage
Incandescent
120

0-500 Watt

1/8
980 sq. ft.
Fluorescent
120

0-500 Watt

1/8
980 sq. ft.
Compact Fluorescent
120

0-500 Watt

1/8
980 sq. ft.
Electronic Low Voltage (ELV)
N/A
Not Compatible
N/A
N/A
Magnetic Low Voltage (MLV)
N/A
Not Compatible
N/A
N/A
LED
N/A
Not Compatible
N/A
N/A
