Sola E-MZA00W50 - 50 Watt - Pulse Start Metal Halide Ballast

ANSI M110 - 4 Tap - Power Factor 90% - Max. Temp. Rating 212 Deg. F - Includes Dry Capacitor, Ignitor and Bracket Kit

Sola E-MZA00W50 - 50 Watt - Pulse Start Metal Halide Ballast Thumbnail

›  View Specs & Details

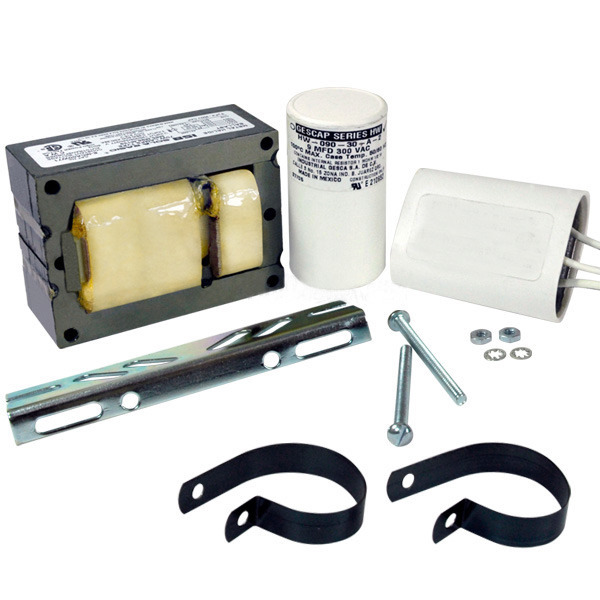

The Sola E-MZA00W50 metal halide ballast features a 4-tap voltage input for compatibility from 120 to 277 volts. For use with 50 watt lamps, this magnetic HID ballast boasts a high power factor of 90%, ensuring maximum efficiency. A temperature rating of 212 degrees F makes the ballast suitable for mounting in warehouses and manufacturing facilities where high heat may be an issue. Includes dry capacitor, ignitor and bracket kit.

Product Image
An error has occurred

Not for Sale. Reference Only.

SKU: BS-MH0050MT

Description

The Sola E-MZA00W50 metal halide ballast features a 4-tap voltage input for compatibility from 120 to 277 volts. For use with 50 watt lamps, this magnetic HID ballast boasts a high power factor of 90%, ensuring maximum efficiency. A temperature rating of 212 degrees F makes the ballast suitable for mounting in warehouses and manufacturing facilities where high heat may be an issue. Includes dry capacitor, ignitor and bracket kit.

Brochures & Spec Sheets

Product Attributes

Brand Sola
MPN (Part No.) E-MZA00W50
UPC 660077381770
Lighting Technology Metal Halide
ANSI Code M110
Wattage 50 Watt
Voltage 120/208/240/277
Ratings and Certifications CSA/Indoor/Dry/UL
Ballast Type HX-HPF
Circuit Type HX-HPF
Mounting Hardware Included
Operates MH50/PS
Start Temp. (Min) -20 Deg. F
Start Temp. (Max) 212 Deg. F
Power Factor 90%
Start Method Pulse Start
Type Metal Halide
Length 3.93 in.
Height 2.81 in.
Width 2.4 in.
Weight 4.1 lb.
Warranty 3-Year Limited
