Magnetic Sign Ballast - 4-12 ft. Total Lamp Length - (1-2 Lamps)
120 Volt - Sola E620-F-1236110-TP
SKU:
BS-E620F1236110TP
Details
Description

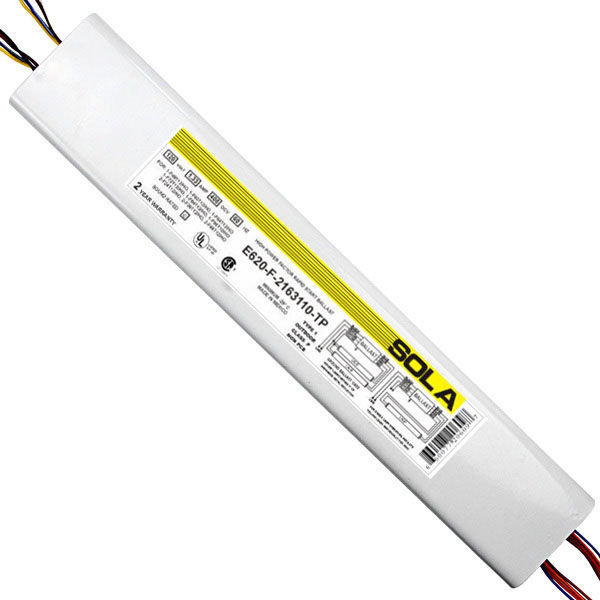

The Sola E620-F-1236110-TP fluorescent sign ballast operates one to two T120/HO lamps at 120 input volts. This rapid start ballast has a maximum wattage rating of 182 watts and can operate up to 12 feet of fluorescent lighting. CSA and UL listed, this ballast is perfect for operating external lighting for office lots or signs as well as indoor lighting for large rooms.
Brochures & Spec Sheets
Warranty
Product Attributes
| Brand | Sola |
|---|---|
| MPN (Part No.) | E620-F-1236110-TP |
| Lighting Technology | Fluorescent |
| UL Listed | Outdoor |
| Voltage | 120 |
| Lamps Operated | (2) Lamps |
| Lamp Footage (Max) | 12 ft. |
| Lamp Footage (Min) | 4 ft. |
| Start Temp. (Min) | -20 Deg. F |
| Power Factor | 98% |
|---|---|
| Start Method | Rapid Start |
| THD | 48% |
| CSA Listed | Yes |
| Length | 12 in. |
| Height | 3 in. |
| Width | 3.2 in. |
| Weight | 11 lbs. |
| Warranty | 3-Year Limited |
