RAB Lighting

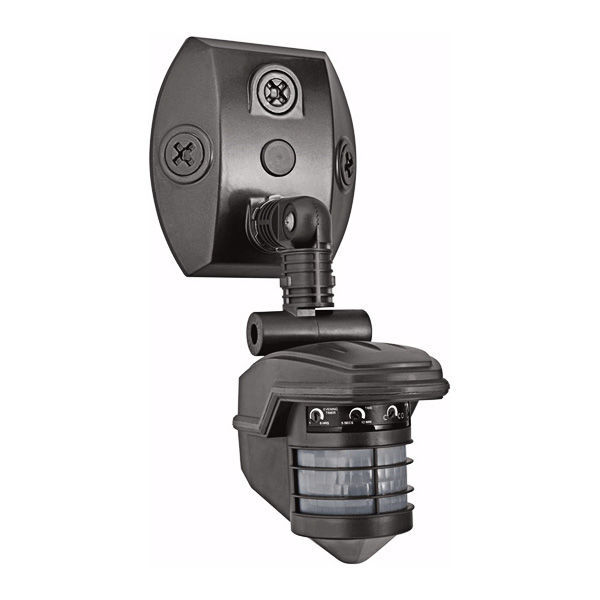

RAB STL360 - Motion-Activated Sensor

180 Deg. Out - 360 Deg. Down - 1000 Watt Switching Capacity - 120 Volt


View More Details

Product Image
An error has occurred
Not for Sale. Reference Only.
SKU: RAB-STL360

Brand RAB Lighting
MPN (Part No.) STL360
Family Super Stealth
Beam Angle 180 Degree/360 Degree
Switch Rating 1000W Incan. @120V
Voltage 120
UL Listed Wet Locations
Case Quantity 6
Warranty 5 Years
Width 3 in.
Depth 4.75 in.
Height 4.38 in.
Finish Bronze
Weight 1.5 lb.
UPC 19813761206

Description

The RAB STL360 "Super Stealth" 180 Deg. out and 360 Deg. down motion-activated sensor is perfect for use in garages or backyards and features an automatic motion detector with a 180 Deg. field of view facing outward and 360 Deg. below the sensor for total coverage and protection. It includes a photocell for automatic dusk-to-dawn operation. It has a switching capacity of 1000 watts of incandescent load at 120 volts.

Load Rating

Load Type
Voltage
Load Rating
HP
Detection
Incandescent
120
0-1000 Watt
N/A
180° Out, 360° Down
Fluorescent
N/A
Not Compatible
N/A
N/A
Compact Fluorescent
N/A
Not Compatible
N/A
N/A
Electronic Low Voltage (ELV)
N/A
Not Compatible
N/A
N/A
Magnetic Low Voltage (MLV)
N/A
Not Compatible
N/A
N/A
LED
N/A
Not Compatible
N/A
N/A

Features

  • Senses 180° out & 360° down for Total Detection
  • Scanning LED's
  • Radio frequency immunity
  • 6000 volt surge protection
  • Quick test time
  • Color matched vandal resistant
  • 1000 watt switching capacity
  • Die Cast Almuminum Floodlights
  • Pre-wired and Pre-assembled on CU4 universal EZ plate
  • CU4 fits round, square, octagonal, recessed and surface boxes
  • Protected manual override with auto reset
  • Can be wired in parallel
  • Temperature Compensation
