    RAB-ALED26
    LED Panels & Troffers

    26 Watt - 70W Equal - LED Area Flood Light Fixture

    120-277V - Bronze Finish


    An error has occurred
    Not for Sale. Reference Only.
    RAB-ALED26

    26 Watt - 70W Equal - LED Area Flood Light Fixture

    120-277V - Bronze Finish

    The RAB ALED26 high performance LED area flood lights are tested and certified to levels beyond industry standards. They are California Title 24 Compliant and exceed the Energy Star requirements for Color Stability during LM-80 testing. All RAB LED products have a 5 Year Warranty on the entire unit - LED, Driver, Finish, Performance - you name it!

    RAB Engineering can provide layout and energy savings assistance. Please contact your 1000Bulbs.com sales professional for assistance with these services.

    Savings over life of lamp: $0

    Energy Savings / ROI Calculator

    Calculate the total kilowatts saved by replacing the inefficient lamps with more efficient lamps

    Calculate the total kWh per year saved

    Calculate the total energy cost saved per year

    Payback on Investment

    Specifications

    Brand:RAB Lighting
    Part No.:ALED26
    IDA Dark Sky:Compliant
    CA Title 24:Compliant
    DLC Listed:Yes
    UL Listed:Wet Locations
    CRI:66
    Color Temperature:5169 Kelvin
    Life Hours:100,000
    Wattage:26 Watt
    Lumens (Initial):1816
    Lumens Per Watt:65
    Voltage:120/208/240/277
    Finish:Bronze
    Metal Halide Equal:70 Watt
    Housing:Die Cast Aluminum
    Light Source:LED
    Start Temp. (Min):-40 Deg. F
    Start Temp. (Max):122 Deg. F
    THD:8.4%

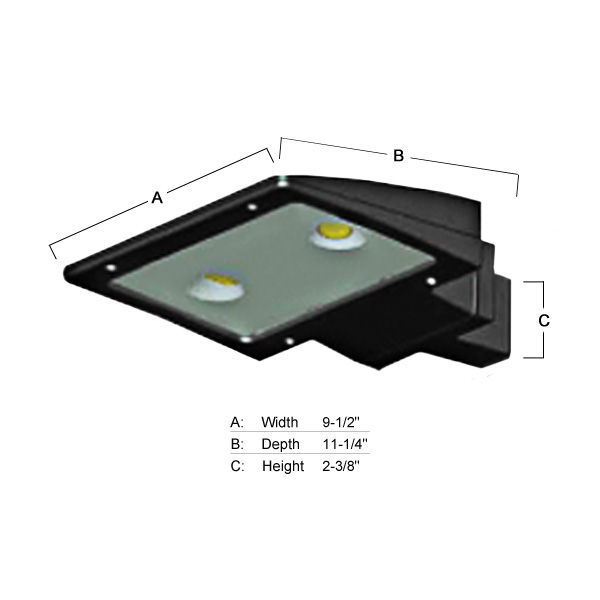

    Height:2.375 in.

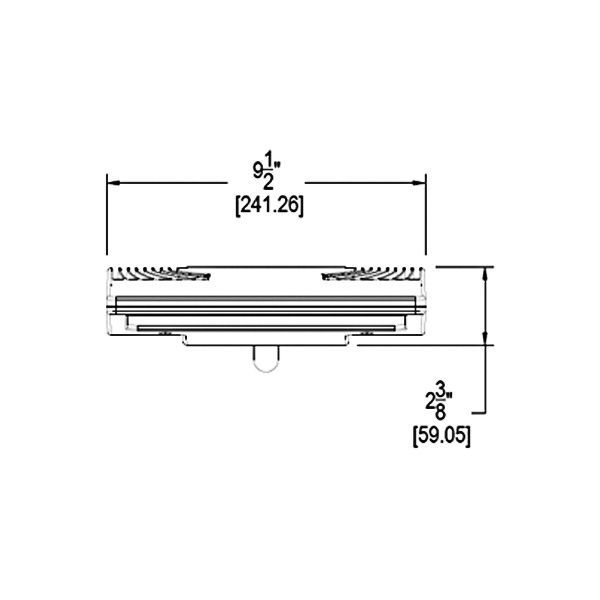

    Width:9.5 in.

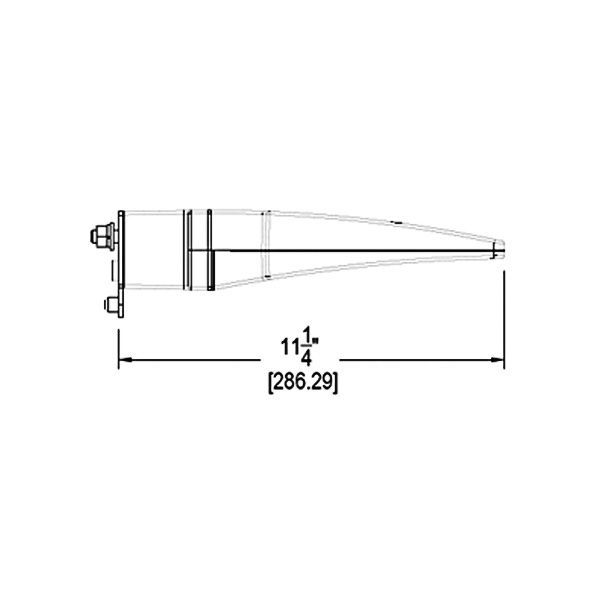

    Depth:11.25 in.
    Weight:6.5 lb.
    Warranty:5 Years
    Case Quantity:12

    Features

    • High Output LED Light Engine
    • Maintains 70% of initial lumens at 100,000 hours
    • Weatherproof high temperature silicone gaskets
    • Superior Heat Sinking with Die Cast Aluminum Housing and External Fins
