***Discontinued 4-3-13*** RAB LOS2400W/120 - Occupancy Sensor

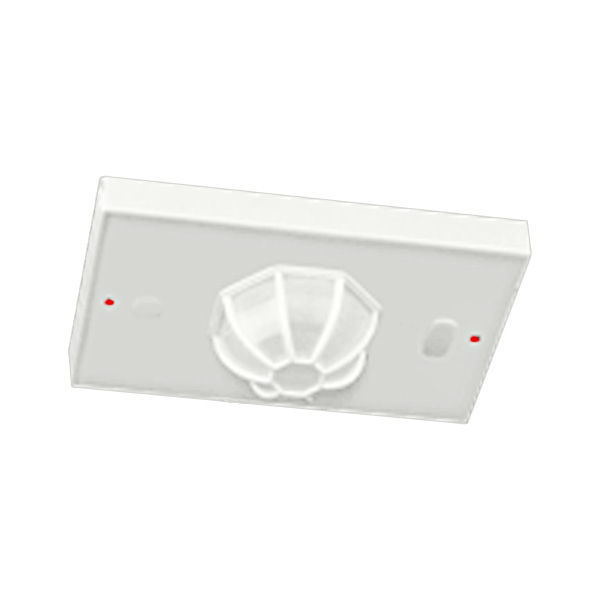

***Discontinued 4-3-13*** RAB LOS2400/120 - 360° Ceiling Mount Occupancy Sensor - For Incandescent and Fluorescent Loads - 120 Volt
Brochures & Spec Sheets
Installation Instructions| Brand: | RAB Lighting |
| MPN (Part No.): | LOS2400/120 |
| UL Listed: | Yes |
| Color: | White |
| Voltage: | 120 |
| Amperage: | 20 Amps |
| Beam Angle: | 360 Degree |
| Coverage: | 2,000 sq. ft. |
| HP Rating: | 1 HP |
| Load Type: | FL/Incandescent |
| Switch Rating: | 2400W Incan. @120V |

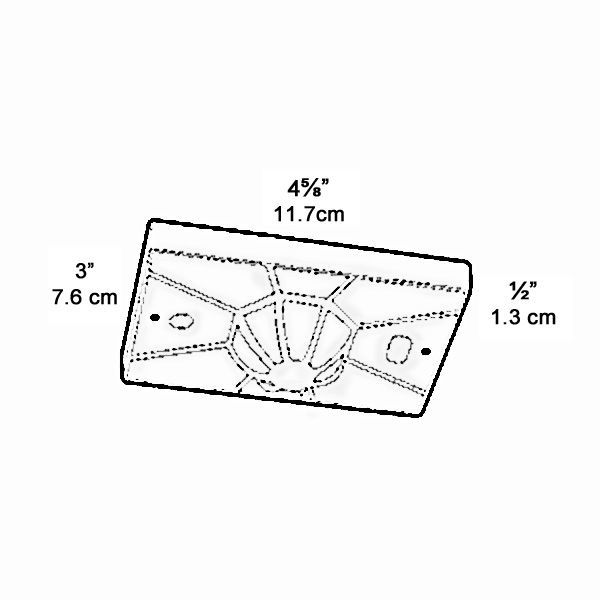

| Length: | 4.625 in. |
| Height: | 0.5 in. |
| Width: | 3 in. |
| Weight: | 0.5 lb. |
| Case Quantity: | 6 |
Description

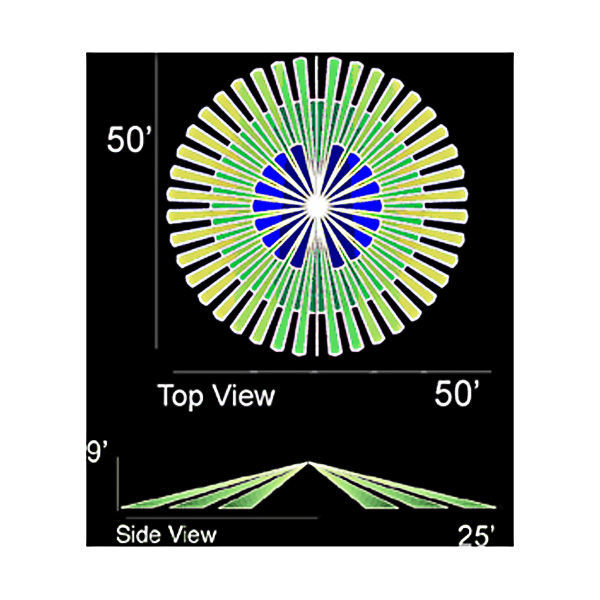

The RAB LOS2400/120 ceiling mount occupancy sensor uses passive infrared (PIR) technology with a 360 Deg. beam angle to switch lights on and off. The sensor switches lights on when it senses a person in the room and off after the room is empty for 6 to 15 minutes, depending on the setting. It is suitable for incandescent, halogen, and fluorescent loads, and comes with an integral 20 amp power pack. Mounted at 9 feet in height, it will cover 2,000 square feet. Note: This occupancy sensor is not compatible with instant start ballasts.
Load Rating
Load Type |
Voltage |
Load Rating |
HP |
Coverage |
Incandescent |
120 |
0-2400 Watt |
1 |
2,000 sq. ft. |
Fluorescent |
120 |
0-2400 Watt |
1 |
2,000 sq. ft. |
Compact Fluorescent |
120 |
0-2400 Watt |
1 |
2,000 sq. ft. |
Electronic Low Voltage (ELV) |
N/A |
Not Compatible |
N/A |
N/A |
Magnetic Low Voltage (MLV) |
N/A |
Not Compatible |
N/A |
N/A |
LED |
N/A |
Not Compatible |
N/A |
N/A |
