    RAB-WPLED10S
    LED Panels & Troffers

    10 Watt - LED - Wall Pack - 70W Equal

    1019 Lumens - 5250 Kelvin - Bronze Finish - 120-240 Volt - RAB WPLED10S


    An error has occurred
    This product is obsolete.
    RAB-WPLED10S

    10 Watt - LED - Wall Pack - 70W Equal

    1019 Lumens - 5250 Kelvin - Bronze Finish - 120-240 Volt - RAB WPLED10S

    The RAB WPLED10S high performance LED wall packs are tested and certified to levels beyond industry standards. They are Dark Sky Approved and exceed the Energy Star requirements for Color Stability during LM-80 testing. All RAB LED products have a 5 Year Warranty on the entire unit - LED, Driver, Finish, Performance - you name it!

    RAB Engineering can provide layout and energy savings assistance. Please contact your 1000Bulbs.com sales professional for assistance with these services.

    Savings over life of lamp: $0

    Energy Savings / ROI Calculator

    Calculate the total kilowatts saved by replacing the inefficient lamps with more efficient lamps

    Calculate the total kWh per year saved

    Calculate the total energy cost saved per year

    Payback on Investment

    Comparable Products

    $7.49
    An error has occurred
    Must be a number
    $9.99
    An error has occurred
    Must be a number
    $21.99
    An error has occurred
    Must be a number

    Specifications

    Brand:RAB Lighting
    MPN (Part No.):WPLED10S
    IDA Dark Sky:Compliant
    CA Title 24:Compliant
    UL Listed:Wet Locations
    CRI:92
    Color Temperature:5250 Kelvin
    Life Hours:100,000
    Wattage:10 Watt
    Lumens (Initial):547
    Lumens Per Watt:41
    Voltage:120/208/240
    Finish:Bronze
    Metal Halide Equal:70 Watt
    Housing:Die Cast Aluminum
    Light Source:LED
    Start Temp. (Min):-40 Deg. F
    Start Temp. (Max):104 Deg. F

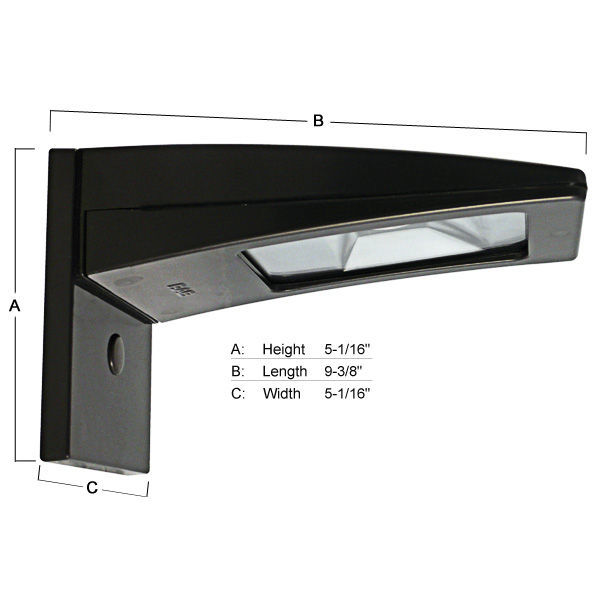

    Length:9.375 in.
    Height:5.0625 in.
    Width:5.0625 in.
    Weight:3.5 lb.
    Warranty:5 Years
    Case Quantity:12

    Features

    • High Performance LED Light Engine
    • Maintains 70% of initial lumens at 100,000 hours
    • Weatherproof high temperature silicone gaskets
    • Superior Heat Sinking with Die Cast Aluminum Housing and External Fins
