$99.19 ea

LED Panels & Troffers
Hatch ESB-1040-14-UV - Sign Ballast - (1-4 Lamps) - T12/HO - 120/277 Volt
Additional Media

Electronic Sign Ballast - 10-40 ft. Total Lamp Length - (1-4 Lamps)

120/277 Volt - Hatch ESB-1040-14-UV


Operates: F96T8/HO and F120T12/HO lamps

The Hatch ESB-1040-14-UV electronic sign ballast features instant start circuitry, is RoHS compliant, and can be used with up to (4) T12/HO 800mA lamps. This thermally protected, UL listed ballast operates at 120 or 277 volts and has standard mounting holes and extra long leads for easy installation.

Brochures & Spec Sheets


Stock Code:  BH-ESB104014UV
Part No.:  ESB-1040-14-UV
Voltage:  120/277

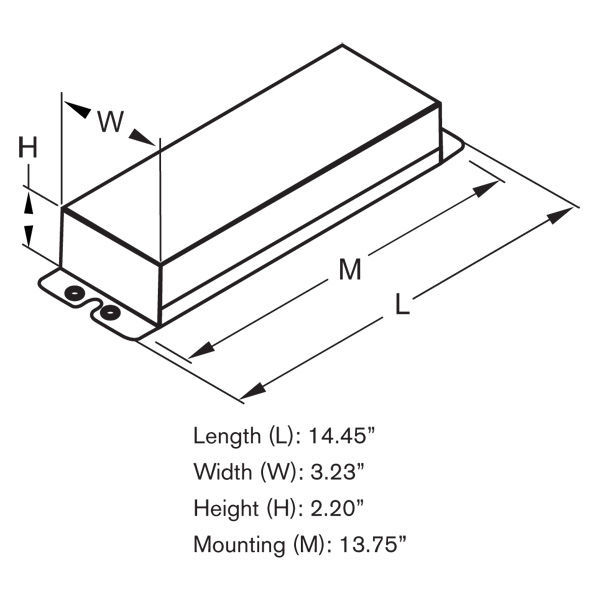

Width:  3.23 in.
Lamps Operated:  (4) Lamps
Lamp Footage (Min):  10 ft.
FCC Part 18:  Class A for EMI and RFI
Start Method:  Instant Start
Weight:  6.9 Ib.
RoHS:  Compliant
Warranty:  3 Years
Brand:  Hatch
UPC:  797281915108
Length:  14.45 in.
Height:  2.2 in.
Lamp Footage (Max):  40 ft.
Start Temp. (Min):  -20 Deg. F
Power Factor:  98%
Type:  Electronic Fluorescent
CSA Listed:  Yes
UL Listed:  Type 2 Outdoor

Customer Reviews

Rated 5 out of 5 by 1 reviewer.
Rated 5 out of 5 by compaired cost of others and this was great value! HO sign ballasts are expensive and our church needed 4 new ones for our road sign. The old magnetic ones were power hungry and these electronic are 40% more efficient. Had to change the way the sockets for each bulb were wired but it was easy. Probably saved $500.00 or more than calling the sign company to do this easy retrofit! April 14, 2012
