    6 Lamp - F32T8 - 4 ft. - Fluorescent High Bay Fixture

    400 Watt Metal Halide Replacement - 120/277 Volt


    Product Image
    An error has occurred
    Not for Sale. Reference Only.
    PLT-TL5086T8

    6 Lamp - F32T8 - 4 ft. - Fluorescent High Bay Fixture

    400 Watt Metal Halide Replacement - 120/277 Volt

    Comparable Products

    6 Lamp - F32T8 - 4 ft. - Fluorescent High Bay Fixture Image 6 Lamp - F32T8 - 4 ft. - Fluorescent High Bay Image 6 Lamp - F32T8 - 4 ft. - Fluorescent High Bay  Image 6 Lamp - F32T8 - 4 ft. - Fluorescent High Bay  Image 6 Lamp - F32T8 - 8 ft. - Industrial High Bay Image
    Description 6 Lamp - F32T8 - 4 ft. - Fluorescent High Bay Fixture 6 Lamp - F32T8 - 4 ft. - Fluorescent High Bay 6 Lamp - F32T8 - 4 ft. - Fluorescent High Bay 6 Lamp - F32T8 - 4 ft. - Fluorescent High Bay 6 Lamp - F32T8 - 8 ft. - Industrial High Bay
    Price $89.53 $74.99 $93.25 $125.69 $201.18
    SKU PLT-TL5086T8 TF-10005 TCP-EL4SA632UNI LITH-0012 TF-FHBL3328M20MV
    Brand PLT PLT TCP Lithonia Lighting PLT
    MPN (Part No.) TL508-6-T8-120/277 HBC632M23MV EL4SA632UNIH10CSPF IBZT8 6L FHBL3328M20MV
    Current Item
    An error has occurred
    An error has occurred
    An error has occurred
    An error has occurred

    Description

    This 6 lamp, F32T8 high bay fluorescent fixture operates between 120 and 277 volts. It features a programmed start ballast and a die formed heavy gauge steel housing. It is UL, ETL, and CSA listed. Bulbs are not included.

    Specifications

    Brand:PLT
    MPN (Part No.):TL508-6-T8-120/277
    UL Listed:Yes
    ETL Listed:Yes
    Voltage:277/120
    Ballast Type:Electronic Fluorescent
    Bulbs Included:No
    Light Source:Linear Fluorescent
    Number of Lamps:6
    Operates:F32T8 Lamps
    Power Factor:High
    Start Method:Programmed Start
    THD:10%
    CSA Listed:Yes
    Length:48 in.
    Height:3.875 in.
    Width:17.5 in.
    Warranty:1 Year

    Features

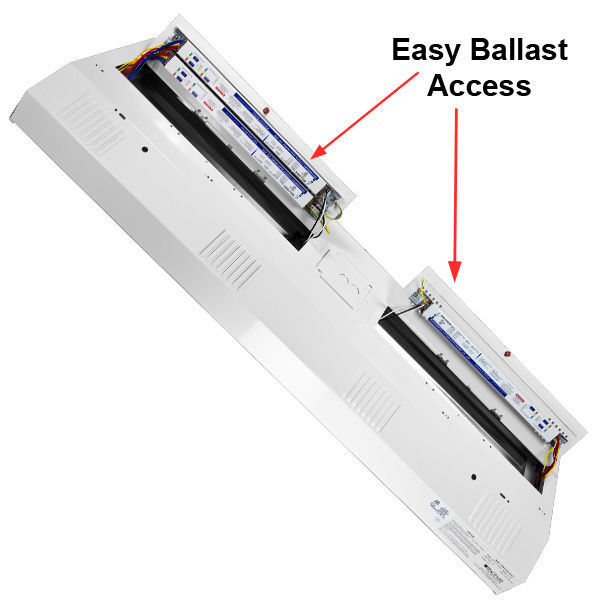

    • Durable, die formed heavy gauge steel with baked high-gloss enamel finish applied post fabrication
    • Multiple knock-out locations and access plate for quick and simple installation
    • Reflector is constructed of highly specular anodized aluminum providing superior reflectance and maximum usable lumens with the least amount of glare
    • A 120/277 VAC UL Listed programmed start electronic ballast standard with a THD <10%, an HPF >0.99 and an "A" sound rating
    • Ballast is thermally protected and automatic resetting, eliminating lamp flicker and providing instant on and instant restrike while maintaining light levels
    • Optional emergency ballasts available
    • Mounted by chain and (2) fixture hooks (included standard)
