100 Watt - Pulse Start Metal Halide
Flood Light Fixture - 120/208/240/277 Volt - RAB EZHH100QT
Comparable Products
| Image |
|
|
|
|
|
|---|---|---|---|---|---|
| Description | 100 Watt - Pulse Start Metal Halide | Nora NTL-158W/4H - White | 4 Lamp - F32T8 - Fluorescent High Bay | 4 ft. LED Wet Location Fixture - 23 Watt | Fluorescent - IP65, IP66, IP67 - 8 ft. - Water/Vapor Tight Fixture |
| Price | $206.67 | $64.35 | $78.45 | $119.00 | $137.03 |
| SKU | RAB-EZHH100QT | NORA-NTL158W4H | TCP-EL4SA432U10 | LITH-0103 | TF-CITLB2328MV |
| Brand | RAB Lighting | Nora Lighting | TCP | Lithonia Lighting | PLT |
| MPN (Part No.) | EZHH100QT | NTL-158W/4H | EL4SA432UNIH10CSPF | XWLED4 120 | CITLB2328MV |
| Add to Cart | Current Item |
An error has occurred
|
An error has occurred
|
An error has occurred
|
An error has occurred
|
Related Products (1)
$16.97
An error has occurred
Brochures & Spec Sheets
Installation InstructionsDescription
This pulse start metal halide area flood light fixture operates at 100 watts and has a 4 tap input. It is UL listed for wet locations, includes (1) 100 watt pulse start metal halide ED17 lamp (medium base), and features a HX-HPF ballast with a high power factor.
RAB Engineering can provide layout and energy savings assistance. Please contact your 1000Bulbs.com sales professional for assistance with these services.
Specifications
| Brand: | RAB Lighting |
| MPN (Part No.): | EZHH100QT |
| ANSI Code: | M90 |
| Family: | Ez Flood |
| UL Listed: | Wet Locations |
| Bulb Shape: | ED17 |
| Life Hours: | 15,000 |
| Wattage: | 100 Watt |
| Lumens: | 9000 |
| Voltage: | 277/120/208/240 |
| Ballast Type: | HX-HPF |
| Bulbs Included: | Yes |
| Finish: | Bronze |
| Housing: | Die Cast Aluminum |
| Light Source: | Metal Halide/Pulse Start |
| Made in USA: | Yes |
| Socket Type: | Medium (E26) |
| Reflector Type: | Hydroformed |
| EISA 2007: | Compliant |

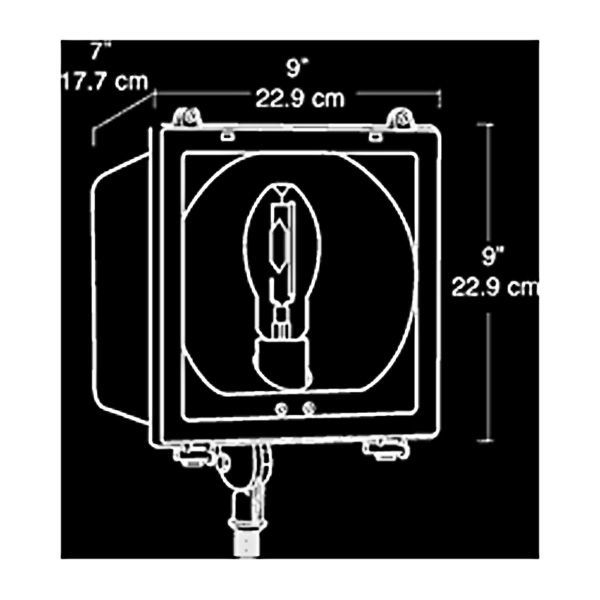

| Height: | 9 in. |
| Width: | 9 in. |
| Depth: | 7 in. |
| Weight: | 12.9 lbs. |
| Case Quantity: | 2 |
Features
- Fins for heat dissipation extend lamp & ballast title
- Hinged lens frame is captive during relamping
- Silicone gasket for durable weatherproofing
- Hydroformed reflector is field adjustable to vertical or horizontal lamp positions
- Long life lamp included
- Precision die cast aluminum housing and lens frame with durable polyester powder coating
- EZ Grip locknut matches fixture finish and can be adjusted with fingers pliers or a screwdriver
