Venture V90D7312K - 200 Watt - Pulse Start - Metal Halide Ballast
ANSI M136 - 4 Tap - Power Factor 90% - Max. Temp. Rating 221 Deg. F - Includes Dry Capacitor, Ignitor, and Bracket Kit
SKU:
BV-V90D7312K
Alternate Products
Details
Description

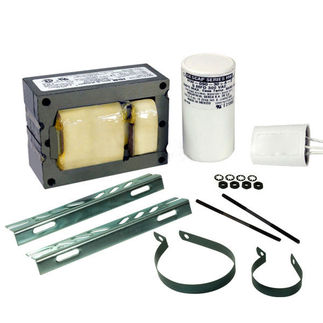

The Venture V90D7312K metal halide ballast features a 4-tap voltage input for compatibility from 120 to 277 volts. For use with 200 watt lamps, this magnetic HID ballast boasts a high power factor of 90%, ensuring maximum efficiency. A temperature rating of 221 degrees F makes the ballast suitable for mounting in warehouses and manufacturing facilities where high heat may be an issue. Includes dry capacitor, ignitor and bracket kit.
Brochures & Spec Sheets
Venture V90D7312K Spec Sheet
Product Attributes
| Brand | Venture |
|---|---|
| MPN (Part No.) | V90D7312K |
| Lighting Technology | Metal Halide |
| ANSI Code | M136 |
| Wattage | 200 Watt |
| Voltage | 120/208/240/277 |
| Ratings and Certifications | CSA/Indoor/UL |
| Ballast Type | CWA |
| Operates | MH200/PS |
| Start Temp. (Min) | -22 Deg. F |
| Start Temp. (Max) | 221 Deg. F |
|---|---|
| Power Factor | 90% |
| Start Method | Pulse Start |
| Type | Metal Halide |
| Length | 3.94 in. |
| Height | 2.84 in. |
| Width | 3.9 in. |
| Weight | 8 lbs. |
| Warranty | 2 Years |
