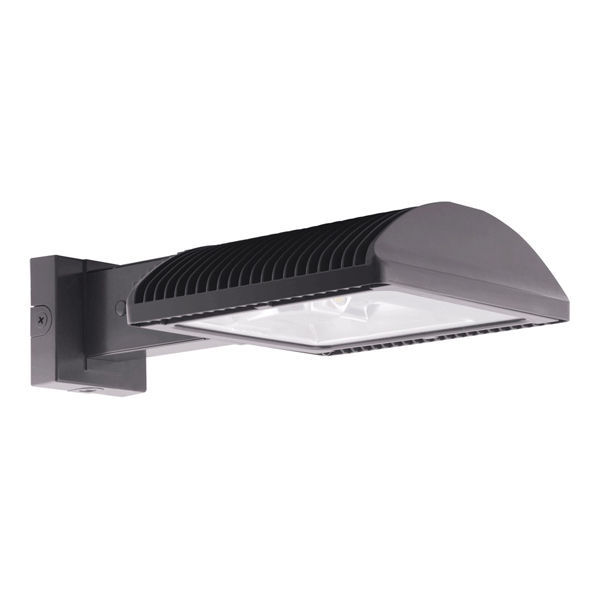

78 Watt - LED - Wall Pack - 400W Equal

5456 Lumens - 5100 Kelvin - Bronze Finish - 120-277 Volt - RAB WPLED4T78

View More Details

Product Image
An error has occurred
Not for Sale. Reference Only.

Brand RAB Lighting
MPN (Part No.) WPLED4T78
Case Quantity 1
Finish Bronze
Housing Die Cast Aluminum
Light Source LED
Start Temp. (Max) 122 Deg. F
Start Temp. (Min) -40 Deg. F
UL Listed Wet Locations
Warranty 5 Years
Weight 34.75 lbs.
CA Title 24 Compliant
Life Hours 100,000
Wattage 78 Watt
Color Temperature 5100 Kelvin
Depth 23.2 in.
Height 6.63 in.
Width 15 in.
IDA Dark Sky Compliant
DLC Listed Yes
CRI 68
Lumens 5,456
Metal Halide Equal 400 Watt
Voltage 120/208/240


The RAB WPLED4T78 high performance LED wall packs are tested and certified to levels beyond industry standards. They are Dark Sky Approved and exceed the Energy Star requirements for Color Stability during LM-80 testing. All RAB LED products have a 5 Year Warranty on the entire unit - LED, Driver, Finish, Performance - you name it!




Specification Grade Optics: Type IV

The Type IV distribution (also known as a Forward Throw) is especially suited for mounting on the sides of buildings and walls, and for illuminating the perimeter of parking areas. It produces a semicircular distribution with essentially the same candlepower at lateral angles from 90 to 270 degrees.

  • High Performance LED Light Engine
  • Maintains 70% of initial lumens at 100,000 hours
  • Weatherproof high temperature silicone gaskets
  • Superior Heat Sinking with Die Cast Aluminum Housing and External Fins
