RAB Lighting

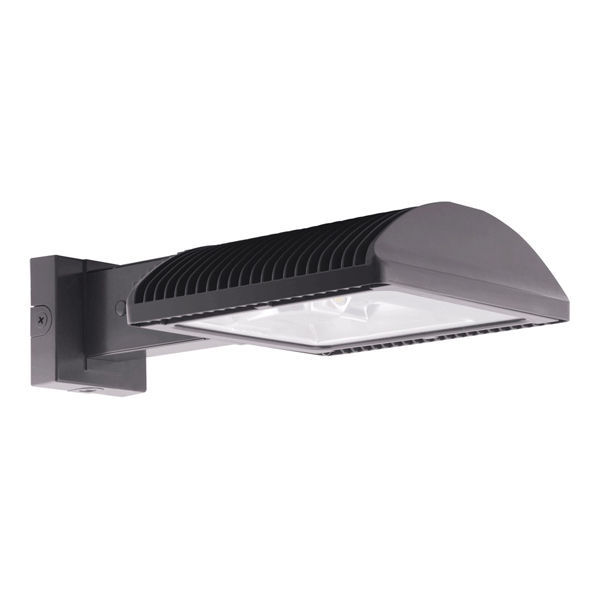

78 Watt - LED - Wall Pack - 250W Equal

3695 Lumens - 4000 Kelvin - Bronze Finish - 120-277 Volt - RAB WPLED3T78N

View More Details

Product Image
An error has occurred
Not for Sale. Reference Only.

Brand RAB Lighting
MPN (Part No.) WPLED3T78N
Wattage 78 Watt
Voltage 120/208/240
Color Temperature 4000 Kelvin
CRI 88
Width 15 in.
Height 6.63 in.
Depth 23.2 in.
Finish Bronze
Metal Halide Equal 250 Watt
Housing Die Cast Aluminum
Life Hours 100,000
Light Source LED
Lumens 3,695
Start Temp. (Min) -40 Deg. F
Start Temp. (Max) 122 Deg. F
Weight 34.75 lbs.
CA Title 24 Compliant
UL Listed Wet Locations
IDA Dark Sky Compliant
Warranty 5 Years
UPC 1981303048


The RAB WPLED3T78N high performance LED wall packs are tested and certified to levels beyond industry standards. They are Dark Sky Approved and exceed the Energy Star requirements for Color Stability during LM-80 testing. All RAB LED products have a 5 Year Warranty on the entire unit - LED, Driver, Finish, Performance - you name it!




Specification Grade Optics: Type III

The Type III distribution is ideal for roadway, general parking, and other area lighting applications where a larger pool of lighting is required. It is intended to be located near the side of the area, allowing the light to project outward and fill the area.

  • High Performance LED Light Engine
  • Maintains 70% of initial lumens at 100,000 hours
  • Weatherproof high temperature silicone gaskets
  • Superior Heat Sinking with Die Cast Aluminum Housing and External Fins
