RAB SB500W - 500W Max. - 180 Deg. Smart Box Outdoor Motion Sensor

500W Max. - 180 Deg. Smart Box Outdoor Motion Sensor - Incandescent and Fluorescent Loads - 1800 sq. ft. Coverage - Features Photocell Control - White - 120 Volt - RAB SB500W

RAB SB500W - 500W Max. - 180 Deg. Smart Box Outdoor Motion Sensor Image
RAB SB500W - 500W Max. - 180 Deg. Smart Box Outdoor Motion Sensor Image

RAB SB500W - 500W Max. - 180 Deg. Smart Box Outdoor Motion Sensor

500W Max. - 180 Deg. Smart Box Outdoor Motion Sensor - Incandescent and Fluorescent Loads - 1800 sq. ft. Coverage - Features Photocell Control - White - 120 Volt - RAB SB500W

Product Image
An error has occurred
Not for Sale. Reference Only.
SKU: RAB-SB500W
Brand:RAB Lighting
MPN (Part No.):SB500W
UPC:19813760261
UL Listed:Wet Locations
Color:White
Voltage:120
Amperage:5 Amps
Beam Angle:180 Degree
Coverage:40 sq. ft.
Load Type:FL/Incandescent
Operation:Single Pole
Switch Rating:250W Fluo. @120V/500W Incan. @120V
Height:5.375 in.
Width:3.5 in.
Depth:1.3 in.
Weight:0.7 lb.

Description

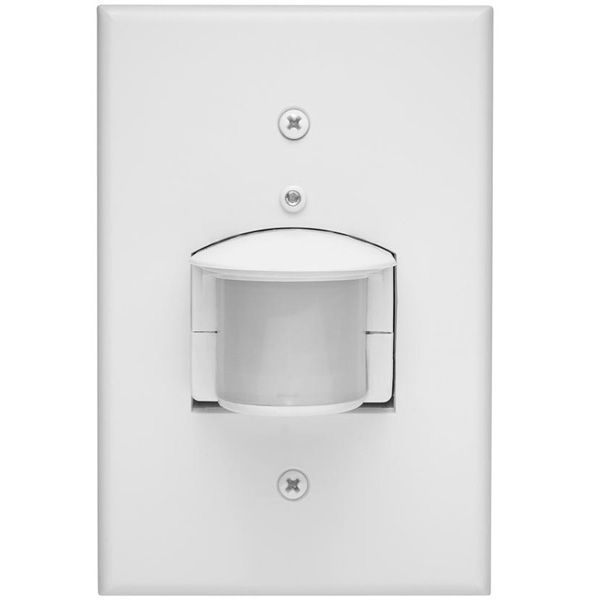

The RAB SB500W Smart Box motion sensor uses passive infrared (PIR) technology to switch lights on and off. The occupancy sensor switches lights on when it senses a person in the room and off after the room is empty for 5 seconds to 15 minutes, depending on the setting. The motion sensor is suitable for incandescent and fluorescent loads and includes a wallplate. Note: This motion sensor is not compatible with instant start ballasts.
