BU-B286I120RH
GE T8s

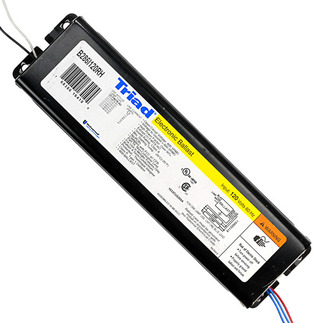

Universal B286I120RH - 120 Volt - Instant Start - Ballast Factor 0.81 - Power Factor 95% - Min. Temp. Rating -20 Deg. F - Operates (1 or 2) F96T8/HO Fluorescent Lamps
Additional Media

Universal Triad B-286I-120-RH

(2) Lamp - F96T8/HO - 120 Volt - Instant Start - 0.81 Ballast Factor



Operates: F48T8HO, F60T8HO, F72T8HO, or F96T8HO lamps

The Universal B-286I-120-RH electronic fluorescent ballast operates (2) F96T8/HO lamps at 120 input volts. Ideal for use in normal light areas, this instant start ballast is typically used in offices, board rooms, and retail. UL listed for the outdoors, this ballast is perfect for external fluorescent sign displays.

Brochures & Spec Sheets

  5 Year Warranty

  B286I120RH Spec Sheet

Specifications

Stock Code:  BU-B286I120RH
Family:  Triad
UPC:  768386164104
Ballast Factor:  0.81
Width:  3.13 in.
Lamps Operated:  (2) Lamps
Power Factor:  95%
THD:  20%
Weight:  4.8 lb.
UL Listed:  Yes


Brand:  Universal
Part No.:  B-286I-120-RH
Voltage:  120
Length:  11.75 in.
Height:  1.78 in.
Start Temp. (Min):  -20 Deg. F
Start Method:  Instant Start
Type:  Electronic Fluorescent
CSA Listed:  Yes
Warranty:  5 Years
