Plusrite 7272 - 750 Watt - Pulse Start - Metal Halide Ballast
ANSI M149 - 5 Tap - Power Factor 90% - Max. Temp. Rating 212 Deg. F - Includes Oil Filled Capacitor, Ignitor, and Bracket Kit
SKU:
PLUSRITE-7272
Alternate Products
Details
Description
- Maximize efficiency with a high power factor of 90%

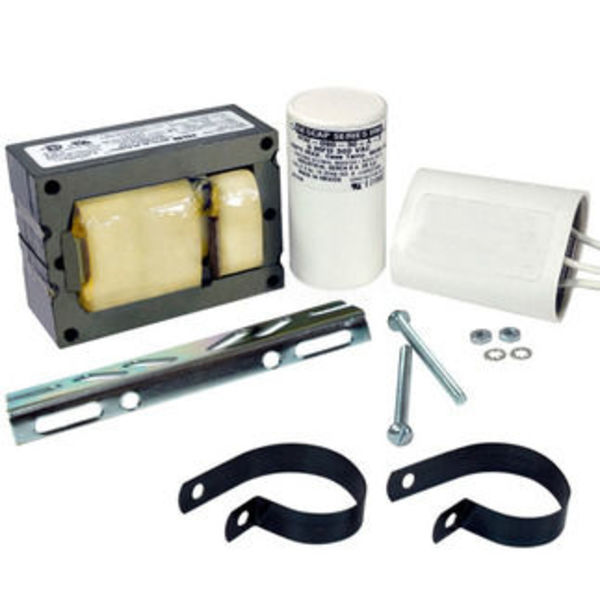

- Includes oil-filled capacitor, ignitor, and bracket kit
- Flexible, 5-tap input voltage, 120 to 480 volts
- RoHS compliant; lead and mercury-free
- Pre-wired for easy installation
- ANSI code M149
Extend your lamp life by using the Plusrite 7272 metal halide ballast with your 750-watt metal halide lamps. This magnetic HID ballast also boasts a temperature rating of 212 degrees F, making it suitable for mounting in warehouses and manufacturing facilities where high heat may be an issue.
Brochures & Spec Sheets
Warranty
Product Attributes
| Brand | Plusrite |
|---|---|
| MPN (Part No.) | 7272 |
| UPC | 844366072727 |
| Lighting Technology | Metal Halide |
| ANSI Code | M149 |
| Safety Rating | |
| Wattage | 750 Watt |
| Voltage | 120/208/240/277/480 |
| Ballast Type | Metal Halide |
| Circuit Type | CWA |
| Mounting | Hardware Included |
| Operates | MH750/PS |
|---|---|
| Start Temp. (Min) | -20 Deg. F |
| Start Temp. (Max) | 212 Deg. F |
| Power Factor | 90% |
| Start Method | Pulse Start |
| Length | 6 in. |
| Height | 4.25 in. |
| Width | 4.41 in. |
| Weight | 18 lbs. |
| Warranty | 3-Year Limited |
