LED Panels & Troffers
TraceLite T03-50-DT
Additional Media

LED Roadway Lighting - 50 Watt

4300 Lumen - 120/277 Volt - Silver Finish - TraceLite 60350DT


Energy Saving Calculator

LED Replacement     Watts
Existing Lamp     Watts
Lamps Replaced
Cost per kWh
Savings over life of lamp:   $0

Energy Savings / ROI Calculator close X

Calculate the total kilowatts saved by replacing the inefficient lamps with more efficient lamps

Original Lamp Wattage
Replacement Lamp Wattage X
Watts Saved Per Lamp =
Number of Lamps to Replace X
Total Watts Saved =
Total Kilowatts Saved =

Calculate the total kWh per year saved

Total Kilowatts Saved
Enter Hours Used Per Day X
Enter Days Used Per Week X
Enter Weeks Used Per Year X
Total kWh Saved Per Year =

Calculate the total energy cost saved per year

Total Kilowatts Saved Per Year
Energy Cost Per kWh X
Total Energy Cost Savings Per Year =

Payback on Investment

Initial Cost of Lighting Upgrade $
Total Energy Cost Savings Per Year /
Number of Months for Payback on Investment =
Savings over life of lamp =

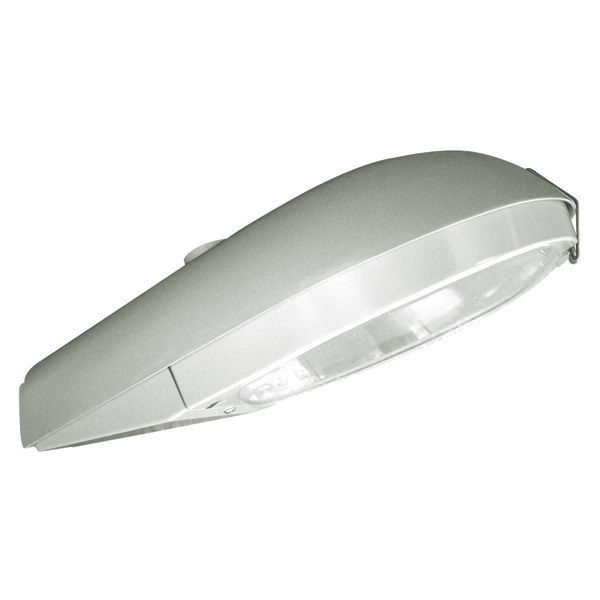

The TraceLite 60-350-DT Roadway Lighting has a cobra head style that uses LED technology as a light source. UL listed for wet locations and contains a 5 year warranty. Contains a die-cast aluminum housing with stainless steel captive fasteners. Operates at 50 watts, 85 CRI and has an average of 50,000 life hours. This is perfect for those wanting an alternative and efficient light source for roadway and parking lot lighting.

Brochures & Spec Sheets


Stock Code:  TL-60350DT
Family:  LEDLITElogic
Wattage:  50 Watt
Color Temperature:  6100 Kelvin
Length:  28.03 in.
Height:  12.60 in.
Metal Halide Equal:  150 Watt
Life Hours:  50,000
Lumens Per Watt:  86
Start Temp. (Max):  104 Deg. F
Weight:  20 lbs.
UL Listed:  Wet Locations
Warranty:  5 Years
Brand:  Trace-Lite
Part No.:  603-50-DT
Voltage:  120/277
CRI:  85
Width:  15.04 in.
Finish:  Silver
Housing:  Die Cast Aluminum
Lumens (Initial):  4300
Start Temp. (Min):  -22 Deg. F
Lens:  Borosilicate Glass
RoHS:  Compliant
UV Protected:  Yes
