RAB ALED5T52 - 52 Watt - LED - Post Top Light Fixture - 5100K Stark White - 120/208/240/277 Volt - Bronze Finish
Additional Media

RAB ALED5T52 - LED Post Top Light

52 Watt - Area Light Fixture - 5100K Stark White - 120/208/240/277 Volt - Bronze Finish


Energy Saving Calculator

LED Replacement     Watts
Existing Lamp     Watts
Lamps Replaced
Cost per kWh
Savings over life of lamp:   $0

Energy Savings / ROI Calculator close X

Calculate the total kilowatts saved by replacing the inefficient lamps with more efficient lamps

Original Lamp Wattage
Replacement Lamp Wattage X
Watts Saved Per Lamp =
Number of Lamps to Replace X
Total Watts Saved =
Total Kilowatts Saved =

Calculate the total kWh per year saved

Total Kilowatts Saved
Enter Hours Used Per Day X
Enter Days Used Per Week X
Enter Weeks Used Per Year X
Total kWh Saved Per Year =

Calculate the total energy cost saved per year

Total Kilowatts Saved Per Year
Energy Cost Per kWh X
Total Energy Cost Savings Per Year =

Payback on Investment

Initial Cost of Lighting Upgrade $
Total Energy Cost Savings Per Year /
Number of Months for Payback on Investment =
Savings over life of lamp =
The RAB ALED5T52 high performance LED post top light is designed for use in large, outdoor areas like parking lots, corporate parks, and retail settings. Tested beyond industry standards, these LED fixtures feature IES Type V Specification Grade Optics, providing wide, uniform light in a 360° pattern of circular illumination. A truly "green" product, this LED fixture is RoHS Compliant, has no mercury, or lead, and emits no UV light. RAB LED products have a 5 Year Warranty on the entire unit - LED, Driver, Finish, Performance - you name it! For the highest quality LED light fixtures, look no further than RAB for performance combined with energy saving.

RAB Engineering can provide layout and energy savings assistance. Please contact your sales professional for assistance with these services.


  • IES type V (circular) distribution
  • 100,000-hour LED lifespan
  • Compatible with standard 2 3/8" tenons
  • Air-flow fins for maximum heat dissipation
  • Wet Location, IP-66 Rated
  • RoHS Compliant
  • 5-year warranty


Stock Code:  RAB-ALED5T52
Part No.:  ALED5T52
Wattage:  52 Watt
Color Temperature:  5100 Kelvin

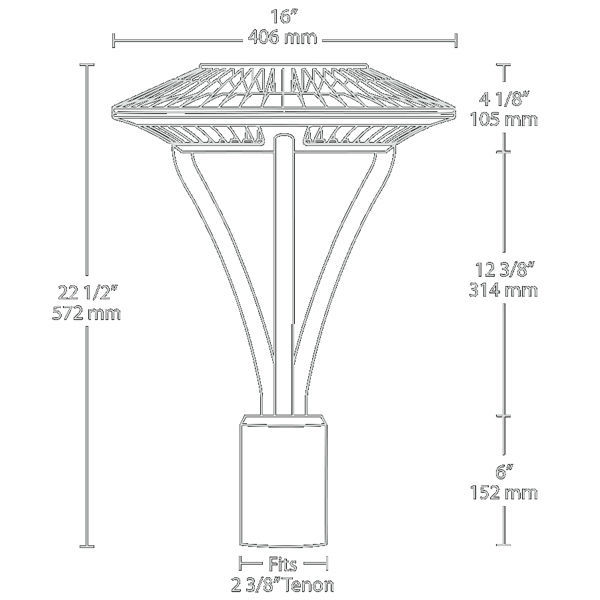

Height:  22.5 in.
Finish:  Bronze
Housing:  Die Cast Aluminum
Light Source:  LED
Lumens Per Watt:  50
Start Temp. (Min):  -40 Deg. F
Lens:  Tempered Glass
RoHS:  Compliant
IP Rating:  IP-66
Brand:  RAB Lighting
UPC:  019813038919
Voltage:  120/208/240/277
CRI:  66
Diameter:  16 in.
Metal Halide Equal:  175 Watt
Life Hours:  100,000
Lumens (Initial):  3089
Number of LEDs:  4
Start Temp. (Max):  104 Deg. F
Weight:  21.8 lb.
UL Listed:  Wet Locations
Warranty:  5 Years
