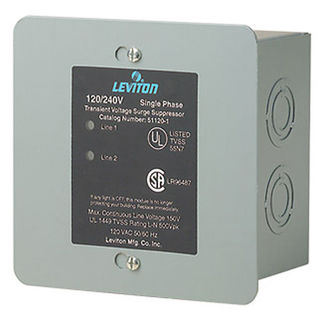

Leviton 51120-1 - AC Single Phase Surge Protector

Leviton 51120-1 - AC Single Phase Surge Protector Image

  • Type 2 SPD

  • Hardwired

  • Panel Mounted

  • 50kA Max. Capacity

  • 120/240 Volt

  • NEMA 1 Indoor Enclosure

Product Image
$189.99 ea
An error has occurred
SKU: LEV-511201

  • Type 2 SPD

  • Hardwired

  • Panel Mounted

  • 50kA Max. Capacity

  • 120/240 Volt

  • NEMA 1 Indoor Enclosure

Description

Leviton's 51120-1 Branch Panel Mounted SPD devices have been designed to protect residential and small commercial establishments from high voltage transients. The standard J-Box metal enclosure simplifies flush mounting in typical frame construction environments, and provides convenient connection means to existing branch panels. The Type 2 surge protector actively monitors spikes and surges entering the property through AC power lines and offers real-time, visual diagnostics for each protected phase.

Leviton 51120-1 - AC Single Phase Surge Protector Image Intermatic AG6503L3 - Surge Arrester Image Intermatic AG6503C3 - Surge Arrester Image Intermatic IG3240-RC3 - Panel Surge Protector Image Intermatic IG1300-2T-1C3 - AC Surge Protector Image
Description Leviton 51120-1 - AC Single Phase Surge Protector Intermatic AG6503L3 - Surge Arrester Intermatic AG6503C3 - Surge Arrester Intermatic IG3240-RC3 - Panel Surge Protector Intermatic IG1300-2T-1C3 - AC Surge Protector
Price $189.99 $95.68 $106.00 $162.93 $237.42
SKU LEV-511201 ELEC-AG6503L3 ELEC-AG6503C3 ELEC-IG3240RC3 ELEC-IG13002T1C3
Brand Leviton Intermatic Intermatic Intermatic Intermatic
MPN (Part No.) 51120-1 AG6503L3 AG6503C3 IG3240-RC3 IG1300-2T-1C3
Current Item
An error has occurred
An error has occurred
An error has occurred
An error has occurred

Related Products (1)

Brand:Leviton
MPN (Part No.):51120-1
UPC:078477827542
Safety Rating:UL Indoor
Wire Gauge:12 AWG
Voltage:120/240
Maximum Voltage:1200 Volt
Housing:NEMA 1 Steel
Mounting:Flush Mount
NEMA:1
Surge Capacity:50kA
Operating Temp:-10°C/60°C
Suppression:MOV
Type:2 SPD
CSA Listed:No
Height:4.06 in.
Width:7 in.
Depth:7 in.
Warranty:5 Year
