Plusrite 7240 - 1000 Watt - Pulse Start - Metal Halide Ballast Thumbnail

Plusrite 7240 - 1000 Watt - Pulse Start - Metal Halide Ballast

ANSI M141 - 4 Tap - Power Factor 90% - Max. Temp. Rating 212 Deg. F - Includes Oil Filled Capacitor, Ignitor, and Bracket Kit


  • Suitable for mounting in warehouses and manufacturing facilities
  • Maximize efficiency with a high power factor of 90%
  • Flexible, 4-tap input voltage, 120 to 277 volts
  • For use with 1000-watt metal halide lamps
  • RoHS compliant; lead and mercury-free
  • Pre-wired for easy installation
  • ANSI code M141

View More Details

Product Image
An error has occurred
Not for Sale. Reference Only.
SKU: PLUSRITE-7240

Brand Plusrite
MPN (Part No.) 7240
UPC 844366072406
Ballast Type Metal Halide
Circuit Type CWA
Mounting Hardware Included
Operates MH1000/PS
Start Temp. (Max) 212 Deg. F
Start Temp. (Min) -20 Deg. F
Power Factor 90%
Start Method Pulse Start
Warranty 3 Years
Weight 21 Ibs.
ANSI Code M141
Wattage 1,000 Watt
Length 6 in.
Height 4.25 in.
Width 4.8 in.
Voltage 120/208/240/277
Safety Rating N/A

Description

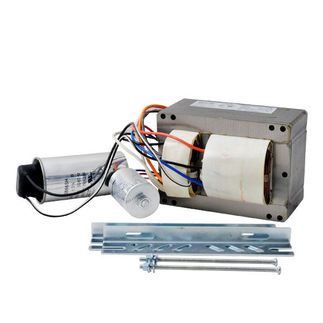

When you buy a Plusrite 7240 pulse start metal halide ballast, the kit includes a magnetic HID core and coil ballast, an oil-filled capacitor, ignitor, mounting bracket and hardware, and instructions, all in one convenient package. Lengthen your lamp life with Plusrite magnetic HID ballasts!

  • Suitable for mounting in warehouses and manufacturing facilities
  • Maximize efficiency with a high power factor of 90%
  • Flexible, 4-tap input voltage, 120 to 277 volts
  • For use with 1000-watt metal halide lamps
  • RoHS compliant; lead and mercury-free
  • Pre-wired for easy installation
  • ANSI code M141
