RAB VXLED13DG/UP-3/4 - LED Vapor Proof Light Fixture Thumbnail
RAB VXLED13DG/UP-3/4 - LED Vapor Proof Light Fixture Thumbnail
RAB Lighting

RAB VXLED13DG/UP-3/4 - LED Vapor Proof Light Fixture

13 Watt - Uplight Fixture - 5000K Stark White - 120/208/240/277 Volt

View More Details

Product Image
An error has occurred
Not for Sale. Reference Only.

Brand RAB Lighting
MPN (Part No.) VXLED13DG/UP-3/4
UPC 19813041889
Case Quantity 12
Finish Natural Metal
Housing Die Cast Aluminum
Light Source LED
Mounting 3-3/4 in. NPS Conduit
Start Temp. (Max) 104 Deg. F
Start Temp. (Min) -30 Deg. C
UL Listed Wet Locations
Warranty 5 Years
Weight 4.4 lb.
CA Title 24 Compliant
Life Hours 100,000
Wattage 13 Watt
Color Temperature 5000 Kelvin

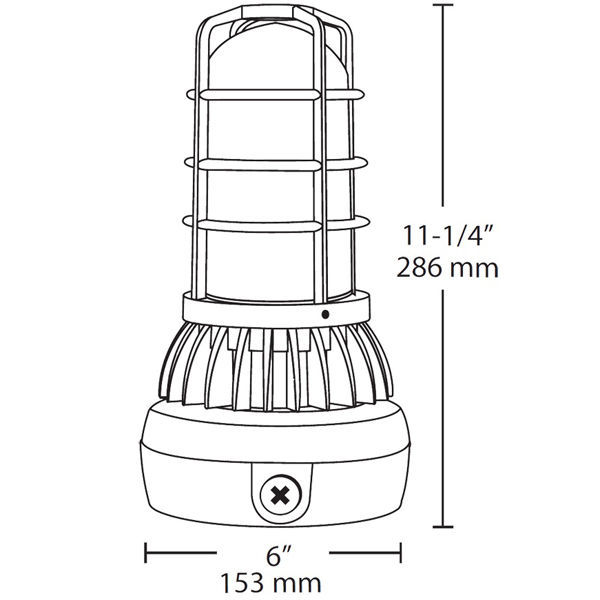

Diameter 6 in.
Height 11.25 in.
Incandescent Equal 60 Watt
CRI 65
Lumens 729
Voltage 120/208/240

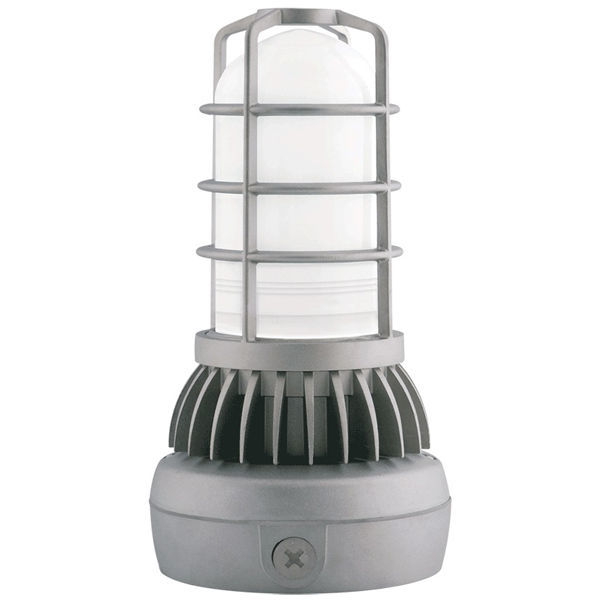

The RAB VXLED13DG/UP-3/4 vapor proof uplight fixture operates one (1) integral 13-watt LED. It includes includes a frosted glass globe with a die cast aluminum lamp guard and three (3) 3/4-inch NPS conduit entry points for mounting. It is specially designed for uplighting in non-hazardous locations where the light source requires protection from rain, corrosive fumes, non-combustible dusts, moisture, non-explosive vapors, and gases. With a 5000K color temperature, the LED fixture has an initial lumen output of 729 lumens and can replace a 60-watt incandescent. All RAB LED fixtures come with a 5-year warranty, ensuring the entire fixture -- driver, finish, and performance -- can be counted on for years to come!


  • Superior Thermal Management (Patent Pending)
  • All Die-Cast Aluminum Construction
  • 100,000 Hour Life Based on LM-80 Tests
  • Thermal Shock-Resistant Frosted Glass Globe
  • Traditional Look, Cutting-Edge Technology
  • 5-year LED warranty
