100 Watt - PAR36 - Spot - Aircraft Landing Light
Incandescent - Screw Terminal Base - 13 Volt
Details
Description

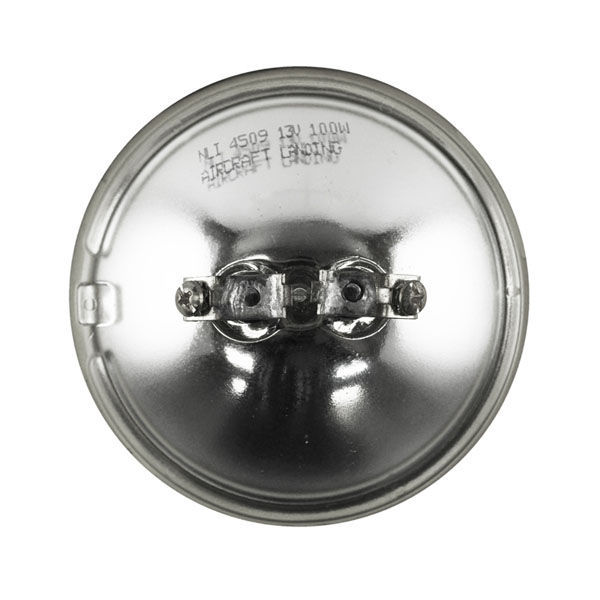

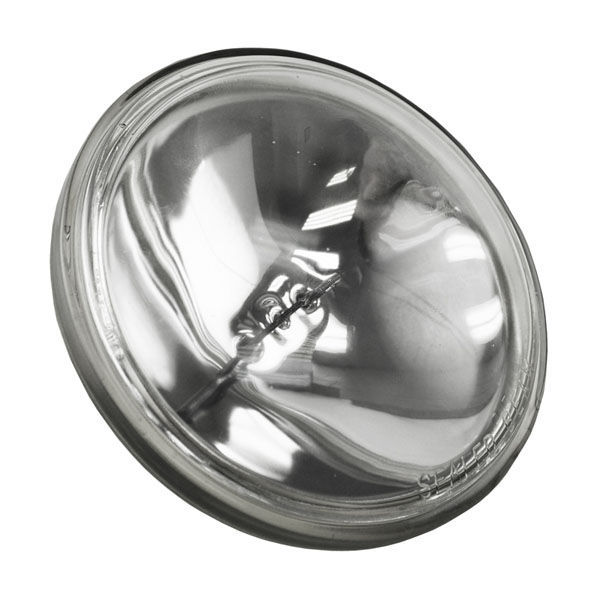

Operating at 13 volts, this PLT 100-watt PAR36 aviation lamp (AIRL-4509) is suitable to replace existing landing light systems. The incandescent lamp features a maximum candle power of 110,000 with a 6-degree vertical beam spread and a 12-degree horizontal beam spread. With a screw terminal base, this sealed beam aircraft lamp is designed to withstand extreme climatic and vibration conditions, which can result in short life expectancy and frequent lamp changing.
Product Attributes
| Brand | PLT |
|---|---|
| MPN (Part No.) | 4509 |
| Order Code | |
| Lighting Technology | Incandescent |
| Bulb Shape | PAR36 |
| Color | Clear |
| Life Hours | 25 |
| Wattage | 100 Watt |
| CB Candlepower | 110,000 |
| Voltage | 13 |
| NSN | 6240-00-237-7867 |
|---|---|
| Horiz Beam Spread | 12 Degree |
| Vert Beam Spread | 6 Degree |
| Base Type | Screw Terminal |
| Filament Type | C-6 |
| Type | Aircraft Landing Light |
| Height | 2.4 in. |
| Diameter | 4.4 in. |
| Case Quantity | 48 |
