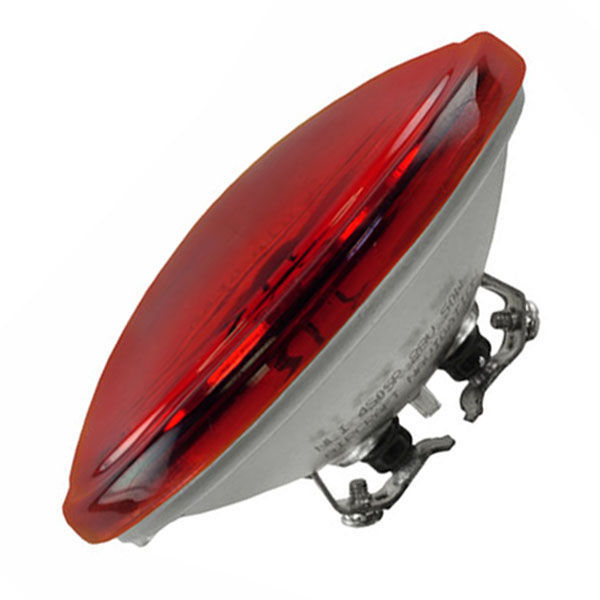

50 Watt - PAR36 - Spot - Red Navigation Light

Halogen - Screw Terminal Base - 28 Volt - PLT 4505R

50 Watt - PAR36 - Spot - Red Navigation Light Thumbnail
50 Watt - PAR36 - Spot - Red Navigation Light Thumbnail
50 Watt - PAR36 - Spot - Red Navigation Light Thumbnail

50 Watt - PAR36 - Spot - Red Navigation Light

Halogen - Screw Terminal Base - 28 Volt - PLT 4505R


Operating at 28 volts, this PLT 4505R 50-watt PAR36 aviation lamp is suitable to replace existing navigation light systems. The halogen lamp features a maximum candle power of 38,000 with a 5-degree vertical beam spread and a 11-degree horizontal beam spread. With a screw terminal base, this sealed beam aircraft lamp is designed to withstand extreme climatic and vibration conditions, which can result in short life expectancy and frequent lamp changing.

›  View Important Details

SKU: AIRL-4505R
Product Image
An error has occurred

Not for Sale. Reference Only.

Details


Description

Operating at 28 volts, this PLT 4505R 50-watt PAR36 aviation lamp is suitable to replace existing navigation light systems. The halogen lamp features a maximum candle power of 38,000 with a 5-degree vertical beam spread and a 11-degree horizontal beam spread. With a screw terminal base, this sealed beam aircraft lamp is designed to withstand extreme climatic and vibration conditions, which can result in short life expectancy and frequent lamp changing.

Product Attributes

Brand PLT
MPN (Part No.) 4505R
Lighting Technology Halogen
Bulb Shape PAR36
Bulb Color Red
Life Hours 400
Wattage 50 Watt
CB Candlepower 38,000
Voltage 28
NSN MS25243-4502
Horiz Beam Spread
Vert Beam Spread 5 Degree
Base Type Screw Terminal
Filament Type CC-6
Type Aircraft Navigation Light
Length 2.4 in.
Diameter 4.4 in.
Case Quantity 12
