18-50 Watt - PAR36 - Flood - Aviation Stop Tail Light

Halogen - 3 Screw Terminal Base - 28 Volt

18-50 Watt - PAR36 - Flood - Aviation Stop Tail Light Thumbnail
18-50 Watt - PAR36 - Flood - Aviation Stop Tail Light Thumbnail
18-50 Watt - PAR36 - Flood - Aviation Stop Tail Light Thumbnail

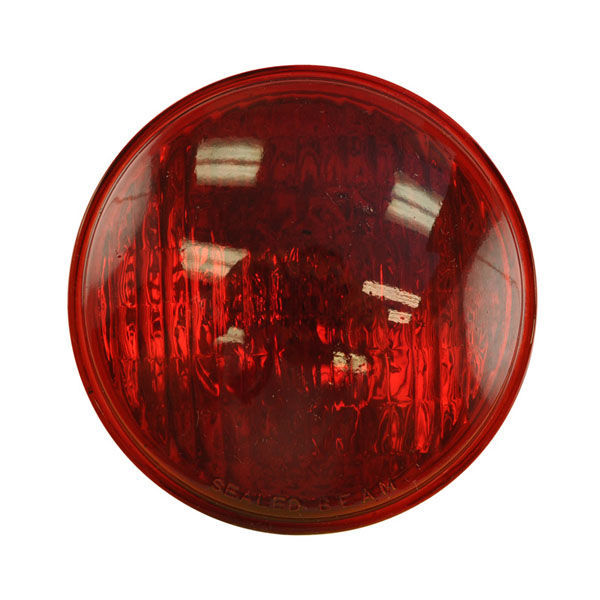

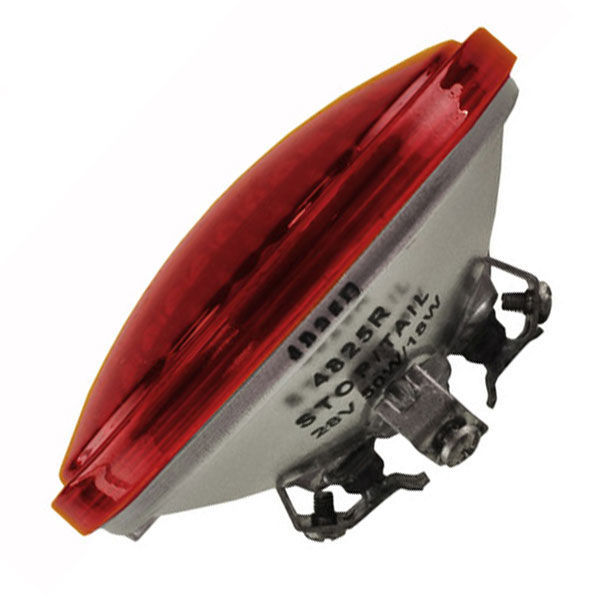

Operating at 28 volts, this PLT 4825R 18-50-watt PAR36 aviation lamp is suitable to replace existing landing light systems. The halogen lamp features a maximum candle power of 200 with a 80-degree vertical beam spread and a 80-degree horizontal beam spread. With a screw terminal base, this sealed beam aircraft lamp is designed to withstand extreme climatic and vibration conditions, which can result in short life expectancy and frequent lamp changing.

›  View Specs & Details

Product Image
$13.33 ea.
An error has occurred
SKU: AIRL-4825R

Lighting can be confusing! Expert Help - Call Now
1-800-624-4488

Operating at 28 volts, this PLT 4825R 18-50-watt PAR36 aviation lamp is suitable to replace existing landing light systems. The halogen lamp features a maximum candle power of 200 with a 80-degree vertical beam spread and a 80-degree horizontal beam spread. With a screw terminal base, this sealed beam aircraft lamp is designed to withstand extreme climatic and vibration conditions, which can result in short life expectancy and frequent lamp changing.

Brand PLT
MPN (Part No.) 4825R
Order Code 50PAR36/28V/3/RED
NSN
Base Type 3 Contact Lugs/Screw Terminal
Bulb Shape PAR36
Case Quantity 48
CB Candlepower 200/40
Color Red
Filament Type C-2V
Light Source Halogen
Type Aviation Stop Tail Light
Life Hours 200
Wattage 18 Watt/50 Watt
Length 2.4 in.
Diameter 4.4 in.
Horiz Beam Spread 80 Degree
Vert Beam Spread 80 Degree
Voltage 28

Description

Operating at 28 volts, this PLT 4825R 18-50-watt PAR36 aviation lamp is suitable to replace existing landing light systems. The halogen lamp features a maximum candle power of 200 with a 80-degree vertical beam spread and a 80-degree horizontal beam spread. With a screw terminal base, this sealed beam aircraft lamp is designed to withstand extreme climatic and vibration conditions, which can result in short life expectancy and frequent lamp changing.
