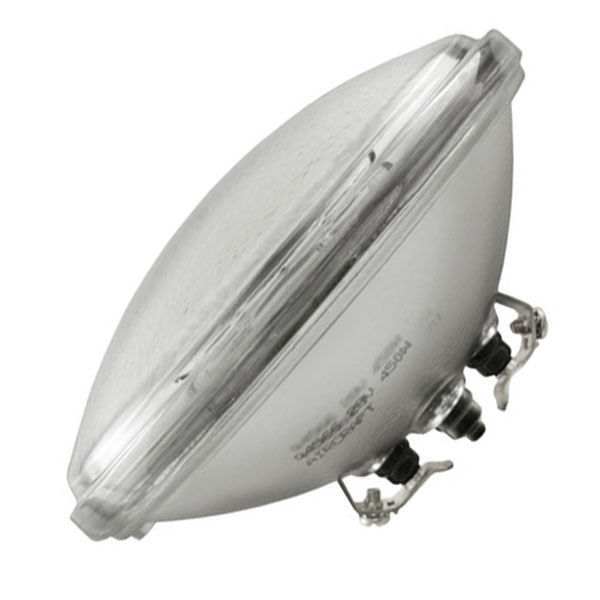

450 Watt - PAR46 - Spot - Aircraft Logo Light
Halogen - Screw Terminal Base - 28 Volt - PLT Q4566
SKU:
AIRL-Q4566
No pricing information found.
Details
Description
Operating at 28 volts, this PLT Q4566 450-watt PAR46 aviation lamp is primarily used as a aircraft logo light. The halogen lamp features a maximum candle power of 150,000 with a 12-degree vertical beam spread and a 16-degree horizontal beam spread. With a screw terminal base, this sealed beam aircraft lamp is designed to withstand extreme climatic and vibration conditions, which can result in short life expectancy and frequent lamp changing.
Product Attributes
| Brand | PLT |
|---|---|
| MPN (Part No.) | Q4566 |
| Order Code | Q450PAR46/2ST/SP-28V |
| Lighting Technology | Halogen |
| Bulb Shape | PAR46 |
| Life Hours | 1,000 |
| Wattage | 450 Watt |
| CB Candlepower | 150,000 |
| Voltage | 28 |
| Horiz Beam Spread | |
|---|---|
| Vert Beam Spread | 12 Degree |
| Base Type | Screw Terminal |
| Filament Type | CC-6 |
| Type | Aircraft Logo Light |
| Length | 3.3 in. |
| Diameter | 5.6 in. |
| Case Quantity | 12 |
