    RAB LOS800I/120 - 180 Deg. PIR Occupancy Sensor

    800W Max. - Single Pole - Incandescent and Fluorescent Loads - 1000 sq. ft. Coverage - No Neutral - Ivory - 120 Volt


    Product Image
    An error has occurred
    Not for Sale. Reference Only.
    RAB-LOS800I120

    RAB LOS800I/120 - 180 Deg. PIR Occupancy Sensor

    800W Max. - Single Pole - Incandescent and Fluorescent Loads - 1000 sq. ft. Coverage - No Neutral - Ivory - 120 Volt

    Description

    The RAB LOS800I120 occupancy sensor uses passive infrared (PIR) technology to switch lights ON/OFF. The occupancy sensor switches lights on when it senses a person in the room and off after the room is empty for 8 seconds to 15 minutes, depending on the setting. The occupancy sensor is suitable for incandescent, halogen, and fluorescent loads and includes a wallplate. Note: This occupancy sensor is not compatible with instant start ballasts.

    Brochures & Spec Sheets

    Load Rating

    Load Type
    Voltage
    Load Rating
    HP
    Coverage
    Incandescent
    120
    0-800 Watt

    N/A

    1,000 sq. ft.
    Fluorescent

    120

    0-800 Watt

    N/A
    1,000 sq. ft.
    Compact Fluorescent
    120
    0-800 Watt
    N/A
    1,000 sq. ft.
    Electronic Low Voltage (ELV)
    N/A
    Not Compatible
    N/A
    1,000 sq. ft.
    Magnetic Low Voltage (MLV)
    N/A
    Not Compatible
    N/A
    1,000 sq. ft.
    LED
    N/A
    Not Compatible
    N/A
    1,000 sq. ft.

    Specifications

    Brand:RAB Lighting
    MPN (Part No.):LOS800I/120
    UPC:1981374272
    UL Listed:Yes
    Color:Ivory
    Voltage:120
    Amperage:6.7 Amps
    Beam Angle:180 Degree
    Coverage:1,000 sq. ft.
    Load Type:FL/Incandescent
    Operation:Single Pole
    Switch Rating:800W Incan. @120V

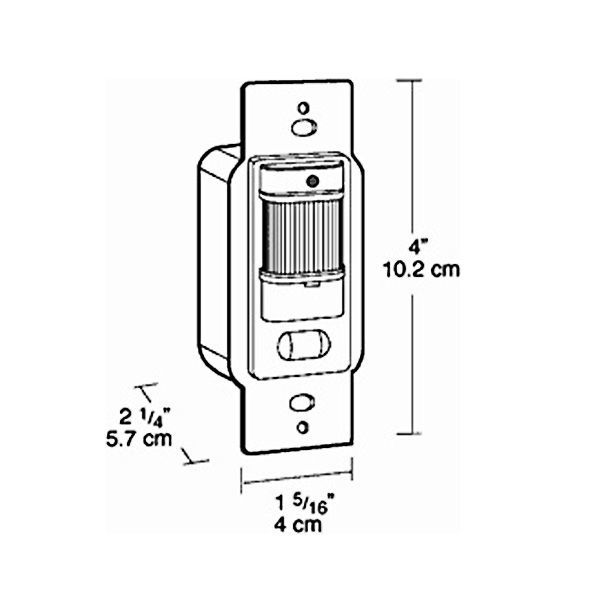

    Height:4 in.
    Width:1.3125 in.
    Depth:2.25 in.
    Weight:0.3 lb.
    Case Quantity:6
